91084-1 | AMP
Extraction tool for connector, 9.071 g, 91084-1
Order No.: 35P7633
EAN: 4099891381462
MPN:
91084-1

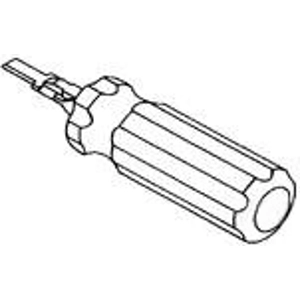

Extraction tool, 91084-1, AMP
The extraction tool is designed to remove locking clip contacts and keying plugs from locking clip connectors that mate with 0.64 mm square posts, and also for extracting individual contacts directly from 0.64 mm square printed circuit board posts. The tool features a flat tip (with hook), and a pointed tip (U-shaped) at the other. The flat tip is used to extract contacts and keying plugs from single row connectors and contacts from pc boards posts. The pointed tip is used for extracting contacts and keying plugs from double row connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Extraction tool | |
| Suitable for | connector | |
| Weight | 9.071 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 82055980 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
