843477-1 | AMP

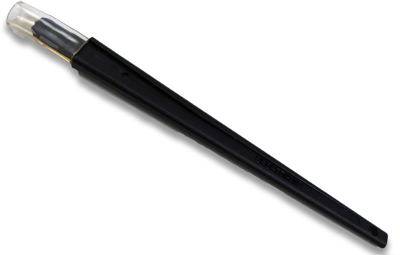

Extraction tool for rectangular contacts, 6.8 g, 843477-1
Order No.: 35P7678
EAN: 4099891381585
MPN:
843477-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
101.3999 € *
Available in 12 Days: 6 pcs. - if ordered today
Total Price:
101.40 € *
Price list
Quantity
Price per unit*
1 pcs.
101.3999 €
2 pcs.
94.8549 €
5 pcs.
89.1072 €
10 pcs.
82.8359 €
*incl. VAT plus shipping costs
Subject to prior sale
Extraction tool, 843477-1, AMP
The extraction/lance reset tool is designed to remove contacts from housings and reset the overly depressed contact locking lances of the removed contact. It features a handle marked with a specific part number, a contact lance release tip, a locking lance reset portion, and a tool stop. The contact lance release tip depresses the contact locking lance to allow extraction of the contact. The tool stop prevents over-insertion of the tip. The lance reset portion repositions an overly depressed locking lance to the proper height - assuring retention of the contact in the housing.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Extraction tool | |
| Suitable for | rectangular contacts | |
| Weight | 6.8 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82055980 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
