318813-1 | AMP
Extraction tool for D-Sub contacts, 65.771 g, 318813-1
Order No.: 35P7642
EAN: 4099891381509
MPN:
318813-1
Unit Price (€ / pc.)
434.8498 € *
Available in 5 Days: 9 pcs. - if ordered today

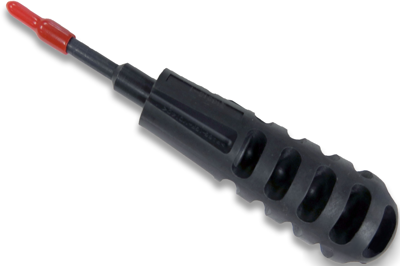

Extraction tool, 318813-1, AMP
The extraction tool is designed to remove the size 8 straight and right-angle coaxial contacts and power contacts and contacts from connector housings. It consists of a spring-loaded metal tip with an integral plunger mounted to a plastic handle with an interlock lever. When the interlock lever is depressed, the plunger is held until the contact locking lances are depressed by the tip. After the lever is released, the plunger is released, permitting the contact to be pushed out the rear of the housing.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 65.771 g | |
| Suitable for | D-Sub contacts | |
| Version | Extraction tool |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
