1-1747981-4 | AMP

1-1747981-4

Order No.: 36P6368
EAN: 4099889860870
MPN:
1-1747981-4

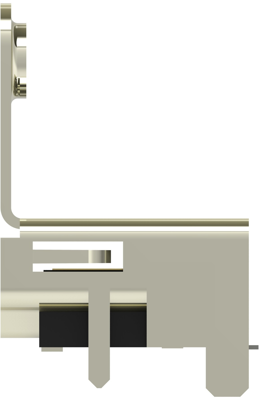

1-1747981-4 AMP HDMI Connector Image 1

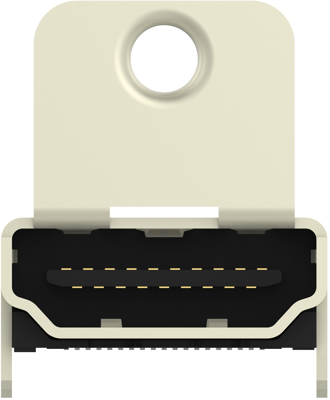

1-1747981-4 AMP HDMI Connector Image 2

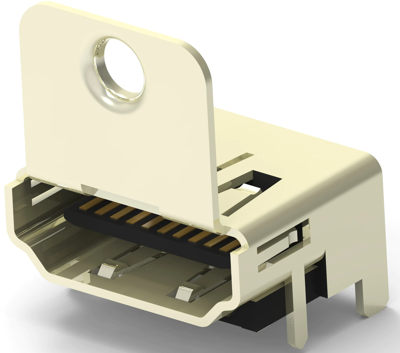

1-1747981-4 AMP HDMI Connector Image 3

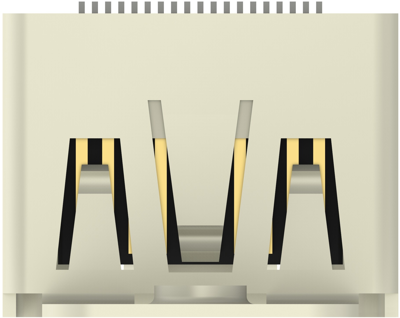

1-1747981-4 AMP HDMI Connector Image 4

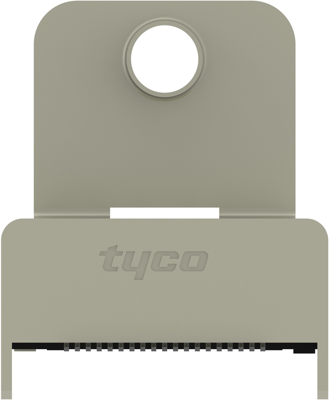

1-1747981-4 AMP HDMI Connector Image 5
Image may differ
Unit Price (€ / pc.)
4.4863 € *
Available in 5 Days: 14,533 pcs. - if ordered today
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
10 pcs.
4.1293 €
50 pcs.
3.7128 €
100 pcs.
3.3439 €
*incl. VAT plus shipping costs
Subject to prior sale

HDMI Connectors, 1-1747981-4, AMP

Ground Component Type: M3 Threaded Hole, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Stacked: No, Number of Ports: 1, PCB Mount Orientation: Right Angle, Number of Positions: 19, Preloaded: Yes, Shell Plating Finish: Matte, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): .5 A, Contact Mating Area Plating Thickness: .1 µm, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention Type: Straight Leg, PCB Mount Location: Top, Connector Mounting Type: Board Mount, Centerline (Pitch): 1 mm, Housing Color: Black, PCB Thickness (Min): 1.6 mm, Tail Length: 1.1 mm,1.6 mm, Mating Cycles (Max): 10000, Soldering Temperature (Max): 260 °C, Operating Temperature Range: -25 – 70 °C, Assembly Process Feature: Pick and Place Cover, Circuit Application: Signal, Packaging Method: Box & Tray,Tray

Technical specifications
Filter Property Value
Pin number 19 pole
Contact connection SMD
Colour black
Assembly flange mounting
Product type panel sockets
Logistics
Property Value
Customs tariff number 85366910
Country of origin US
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
