5352033-1 | AMP


default S
default L


Total price
( 7.8421 € * / pcs.)
7.84 €
Currently not in stock, we will order for you
Price per unit*
13 pcs.
7.8421 €
*incl. VAT plus shipping costs

Product by AMP at Bürklin Elektronik

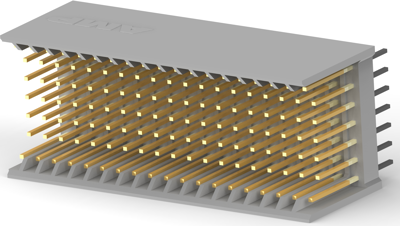

Hard Metric Backplane Connectors, 5352033-1, AMP

Backplane Interface Type: 2mm HM, PCB Connector Assembly Type: PCB Mount Header, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Signal Positions: 95, Number of Columns: 19, Number of Rows: 7, Backplane Architecture: Mezzanine, Number of Positions: 133, Crosstalk Version: Standard, Data Rate: ≤1 Gb/s, Contact Base Material: Phosphor Bronze, CompactPCI Designation: P3, Contact Mating Area Plating Material: Gold, Contact Mating Area Plating Material Thickness: 1.27 µm, Contact Current Rating (Max): 1.5 A, Connector Mounting Type: Board Mount, Housing Material: Polyester - GF, Centerline (Pitch): 2 mm, Housing Color: Gray, Backplane Module Length: 38 mm, Operating Temperature Range: -55 – 125 °C, Shielded: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, AdvancedTCA Specified Product: No, Packaging Quantity: 13, Packaging Method: Tube, Comment: Row Configuration 5+2

Technical specifications
Connection press-in connection
Design B19
Contact type pin
contact surface gold-plated
Rated current 1.5 A
Orientation straight
Pin number 133 pole
Grid 2 mm
Show similar products (0)
Country of origin TW
Customs tariff number 85366990
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
