3-646513-0 | AMP
Male connector, 88 pole, pitch 2 mm, straight, 3-646513-0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.2102 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
7,351.34 € *
Price list
Quantity
Price per unit*
720 pcs.
10.2102 €
1000 pcs.
9.4010 €
*incl. VAT plus shipping costs
Subject to prior sale

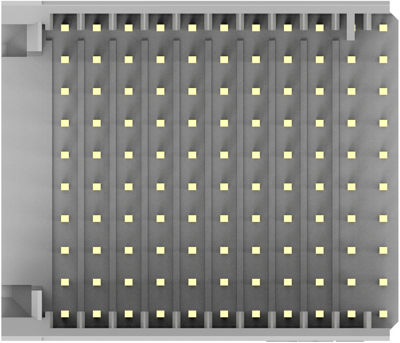

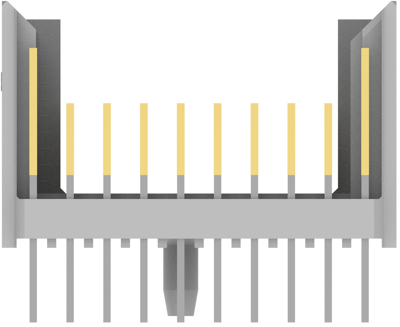

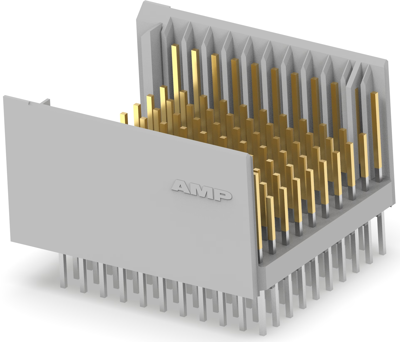

PCB header, 3-646513-0, AMP
Hard metric Backplane connector, PCB Mount header, ≤1 Gb/s, 11 Column, 8 Row, 88 Position, 2 mm centerline, Vertical, Gray, Tube, Gold.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | F11 | |
| Contact type | pin | |
| Pin number | 88 pole | |
| Grid | 2 mm | |
| Connection | press-in connection | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
