63824-1 | AMP

Faston plug, 6.35 x 0.81 mm, L 14.02 mm, uninsulated, straight, 63824-1

Order No.: 34P8738
EAN: 4099889614305
MPN:
63824-1
Series: FASTON

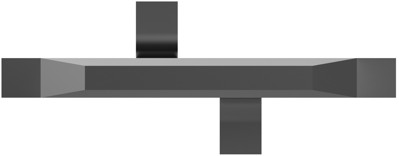

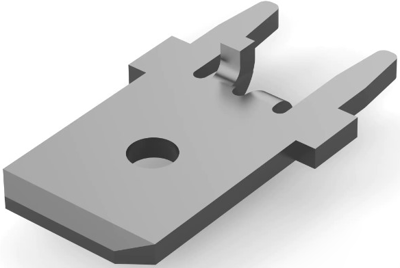

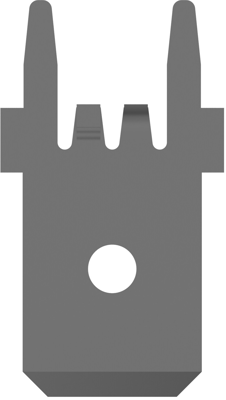

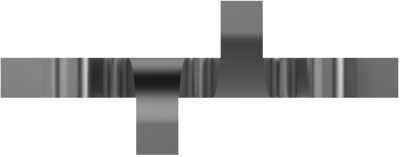

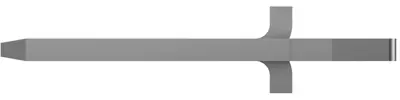

63824-1 AMP Flat Plugs Image 1
63824-1 AMP Flat Plugs Image 2
63824-1 AMP Flat Plugs Image 3
63824-1 AMP Flat Plugs Image 4
63824-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.0619 € *
Available in 5 Days: 90,000 pcs. - if ordered today
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0619 €
250 pcs.
0.0571 €
500 pcs.
0.0536 €
1000 pcs.
0.0476 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 63824-1, TE Connectivity

Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Copper or Nickel, Terminal Size: 6.35, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: With, PCB Terminal PCB Thickness (Recommended): 1.57 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 1.4 mm, Height Above PC Board: 10.21 mm, Operating Temperature Range: -30-110 °C, Packaging Quantity: 10000, PCB Terminal Packaging Method: Reel, Comment: 0.2 brass material. Insertion equipment available.

Technical specifications
Filter Property Value
Plug width x plug thickness 6.35 x 0.81 mm
Material brass, tin-plated
Version faston plug
Isolated No
Angulation 180°
Design straight
Length 14.02 mm
Connection solder connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
