63664-1 | AMP

Faston plug, 4.78 x 0.51 mm, L 16 mm, uninsulated, straight, AWG 27-23, 63664-1

Order No.: 34P9026
EAN: 4099889614558
MPN:
63664-1

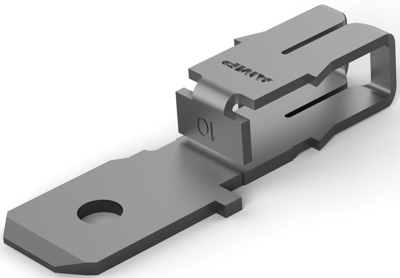

63664-1 AMP Flat Plugs Image 1

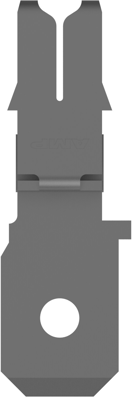

63664-1 AMP Flat Plugs Image 2

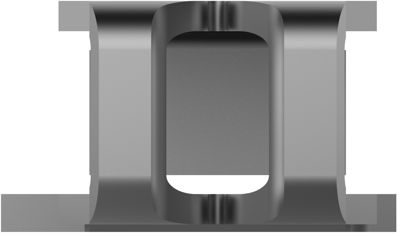

63664-1 AMP Flat Plugs Image 3

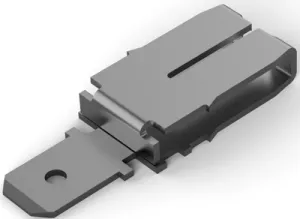

63664-1 AMP Flat Plugs Image 4

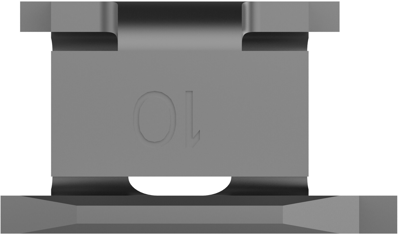

63664-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.0904 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
3,255.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
36000 pcs.
0.0904 €

Magnet Wire Terminals, 63664-1, TE Connectivity

Magnet Wire Terminal Wire/Cable Type: Magnet Wire, Sealable: No, Cavity Size: Size 2, Magnet Wire Terminal Plating Material: Tin, Terminal & Splice Type: Tab, Magnet Wire Terminal Terminal Type: Tab, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: IDC Standard, Magnet Wire Terminal Mating Retention Type: Hole, Magnet Wire Terminal Mating Tab Width: 4.78 mm, Magnet Wire Terminal Mating Tab Thickness: 0.51 mm, Terminal Height: 7.62 mm, Magnet Wire Size: 0.36-0.57 mm, Magnet Wire Size: 27-23 AWG, Operating Temperature Range: -65-150 °C, Identification Number: 10, Packaging Quantity: 12000, Magnet Wire Terminal Packaging Method: Reel,Reel/Carton, Comment: After insertion into plastic cavity, tab portion must be bent over 45-90° or potted in to prevent pullout when mating receptacle is disconnected. Two magnet wires may be terminated in the same terminal slot if diameters are equal. Varnish resist coating.

Technical specifications
Filter Property Value
AWG cross-section AWG 27-23
Length 16 mm
Material brass, tin-plated
Isolated No
Design straight
Connection IDC connection
Plug width x plug thickness 4.78 x 0.51 mm
Version faston plug
Logistics
Property Value
Customs tariff number 85369095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
