63381-1 | AMP

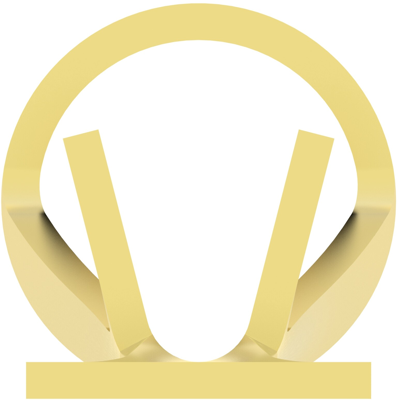

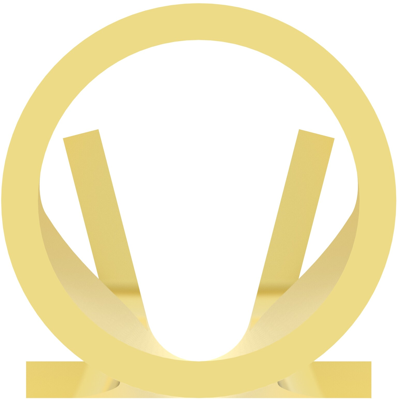

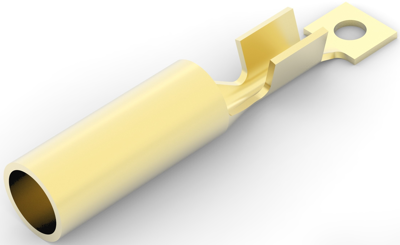

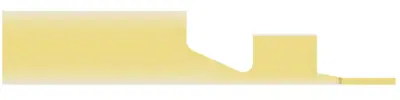

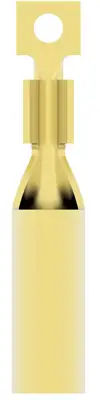

Round plug, Ø 3.17 mm, L 16.13 mm, uninsulated, straight, 0.3-0.8 mm², AWG 22-18, 63381-1
Order No.: 35P2538
EAN: 4099889614749
MPN:
63381-1
Unit Price (€ / pc.)
0.1607 € *
Available in 5 Days: 10,000 pcs. - if ordered today
Crimp Wire Pins, Tabs and Ferrules, 63381-1, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Unplated, Terminal & Splice Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Terminal Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.17 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22-18 AWG, Wire Size: 0.3-0.8 mm², Wire Size: 642-1624 CMA, Barrel Inside Diameter: 1.01 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.35 mm, Insulation Requirement: Uninsulated, Heavy Duty: No, Packaging Quantity: 5000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Version | round plug | |
| diameter | 3.17 mm | |
| AWG cross-section | AWG 22-18 | |
| Material | brass | |
| Connection | crimp connection | |
| Design | straight | |
| Cable cross-section | 0.3-0.8 mm² | |
| Length | 16.13 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
