62409-1 | AMP

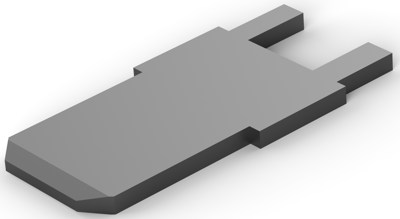

Faston plug, 6.35 x 0.81 mm, L 15.8 mm, uninsulated, straight, 62409-1
Unit Price (€ / pc.)
0.1476 € *
Available in 5 Days: 58,448 pcs. - if ordered today
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1476 €
50 pcs.
0.1369 €
100 pcs.
0.1273 €
250 pcs.
0.1154 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 62409-1, AMP
PCB Terminal, Tab, Mating Tab Width 6.35 mm, PCB Hole Diameter 1.4 mm, Through Hole - Solder, Tin Plating, Brass, Bag, FASTON 250.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 15.8 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Angulation | 180° | |
| Design | straight | |
| Connection | solder connection | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Version | faston plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
