61365-1 | AMP

Faston plug, 6.35 x 0.81 mm, L 9.53 mm, uninsulated, angled, 61365-1

Order No.: 34P8463
EAN: 4099889613445
MPN:
61365-1
Series: FASTON

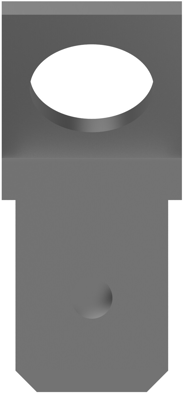

61365-1 AMP Flat Plugs Image 1

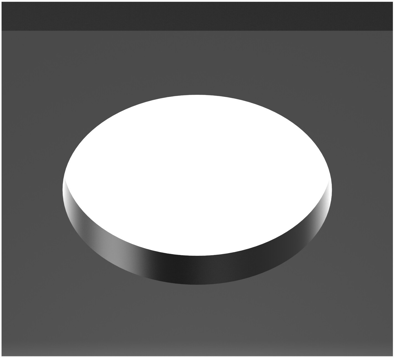

61365-1 AMP Flat Plugs Image 2

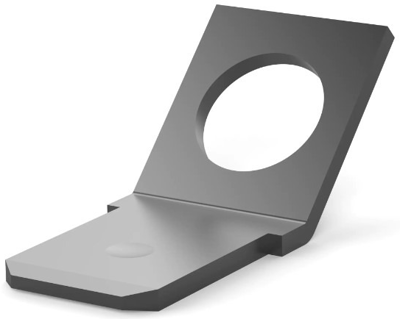

61365-1 AMP Flat Plugs Image 3

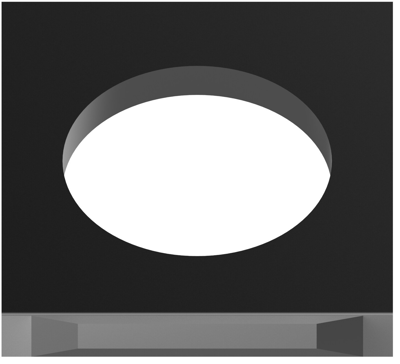

61365-1 AMP Flat Plugs Image 4

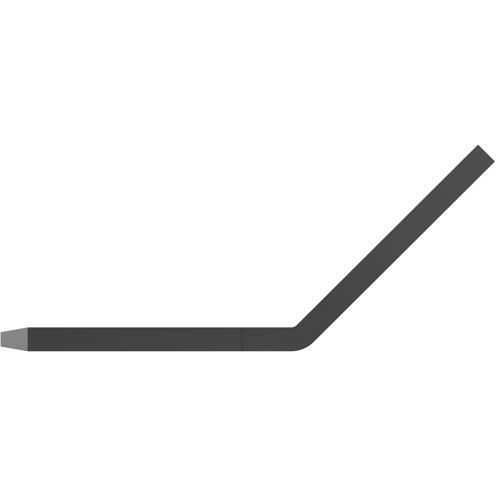

61365-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2499 € *
Available: 10 pcs.
Available in 5 Days: 147,785 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2499 €
20 pcs.
0.1809 €
200 pcs.
0.1571 €
500 pcs.
0.1369 €
2000 pcs.
0.1214 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 61365-1, TE Connectivity

FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, Finish: Matte, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: 45 Bend, PCB Terminal Termination Method: Screw, Stud Diameter: 5.16 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 5.16 mm, Height Above PC Board: 7.48 mm, Operating Temperature Range: -40-105 °C, CSA Certified: Yes, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag

Technical specifications
Filter Property Value
Version faston plug
Plug width x plug thickness 6.35 x 0.81 mm
Connection screw connection
Material brass, tin-plated
Angulation 45°
Design angled
Isolated No
Length 9.53 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
