61012-3 | AMP

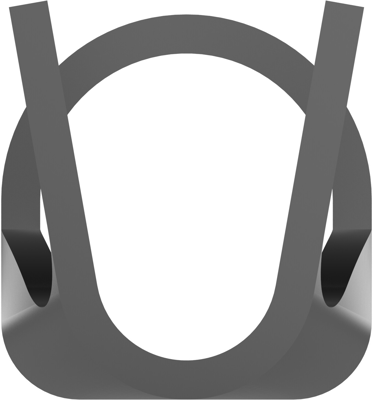

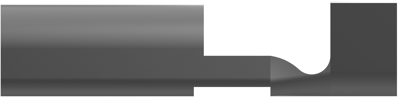

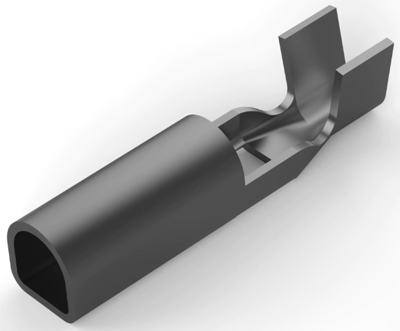

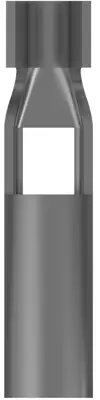

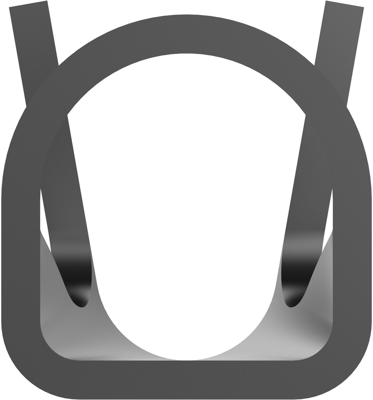

Round plug, Ø 2.77 mm, L 16.38 mm, uninsulated, straight, 0.8-2.0 mm², AWG 18-14, 61012-3
Order No.: 35P2536
EAN: 4099889614725
MPN:
61012-3
Unit Price (€ / pc.)
0.0857 € *
Standard delivery time from the manufacturer is: 33 Weeks
Crimp Wire Pins, Tabs and Ferrules, 61012-3, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Terminal Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 2.77 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18-14 AWG, Wire Size: 0.8-2 mm², Wire Size: 1624-4106 CMA, Barrel Inside Diameter: 1.65 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.35 mm, Insulation Requirement: Uninsulated, Packaging Quantity: 15000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel, Comment: Can be molded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 16.38 mm | |
| Design | straight | |
| Connection | crimp connection | |
| diameter | 2.77 mm | |
| Cable cross-section | 0.8-2.0 mm² | |
| Isolated | No | |
| Version | round plug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 18-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
