61012-1 | AMP

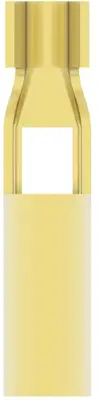

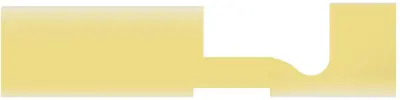

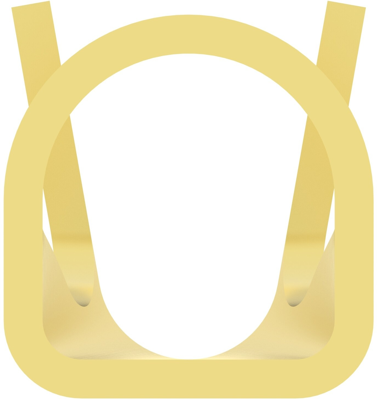

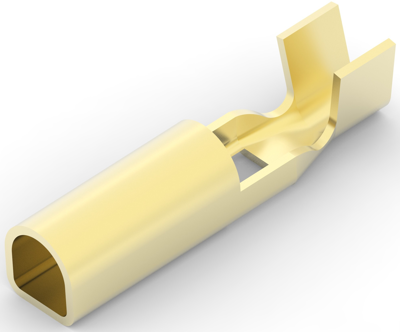

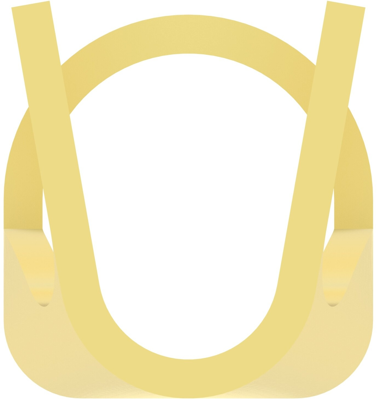

Round plug, Ø 2.77 mm, L 16.38 mm, uninsulated, straight, 0.8-2.0 mm², AWG 18-14, 61012-1
Order No.: 35P2535
EAN: 4099889614718
MPN:
61012-1
Unit Price (€ / pc.)
0.0797 € *
Available in 5 Days: 15,000 pcs. - if ordered today
Crimp Wire Pins, Tabs and Ferrules, 61012-1, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Unplated, Terminal & Splice Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Terminal Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 2.77 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18-14 AWG, Wire Size: 0.8-2 mm², Wire Size: 1624-4106 CMA, Barrel Inside Diameter: 1.65 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.35 mm, Insulation Requirement: Uninsulated, Packaging Quantity: 15000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel, Comment: Can be molded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Material | brass | |
| Design | straight | |
| Version | round plug | |
| diameter | 2.77 mm | |
| Isolated | No | |
| AWG cross-section | AWG 18-14 | |
| Length | 16.38 mm | |
| Cable cross-section | 0.8-2.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
