60443-2 | AMP

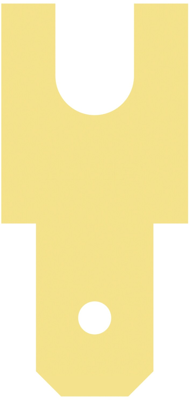

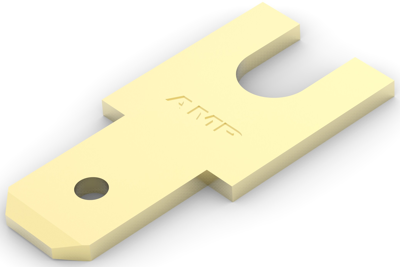

Faston plug, 4.75 x 0.81 mm, L 15.37 mm, uninsulated, straight, 60443-2
Order No.: 34P8443
EAN: 4099889613278
MPN:
60443-2
Unit Price (€ / pc.)
0.2713 € *
Available in 5 Days: 6,995 pcs. - if ordered today
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2713 €
10 pcs.
0.2511 €
25 pcs.
0.2344 €
50 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminals, 60443-2, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Terminal Size: 4.75, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, Stud Diameter: 3.18 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.18 mm, Receptacle Terminal Stock Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Plug width x plug thickness | 4.75 x 0.81 mm | |
| Material | brass | |
| Version | faston plug | |
| Isolated | No | |
| Angulation | 180° | |
| Design | straight | |
| Length | 15.37 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
