580133-5 | AMP

Round plug, Ø 3.6 mm, L 45.21 mm, uninsulated, straight, 580133-5

Order No.: 36P9884
EAN: 4099889615197
MPN:
580133-5

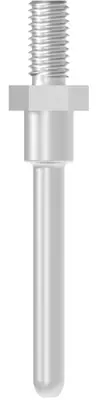

580133-5 AMP Flat Plugs Image 1

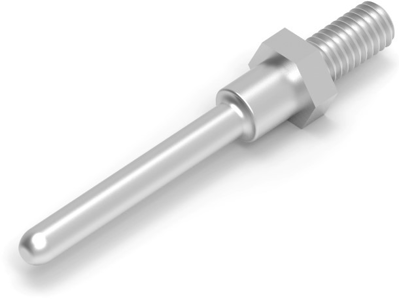

580133-5 AMP Flat Plugs Image 2

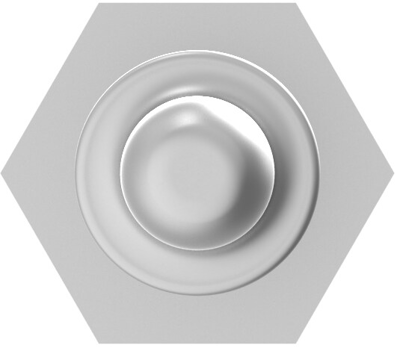

580133-5 AMP Flat Plugs Image 3

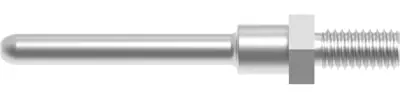

580133-5 AMP Flat Plugs Image 4

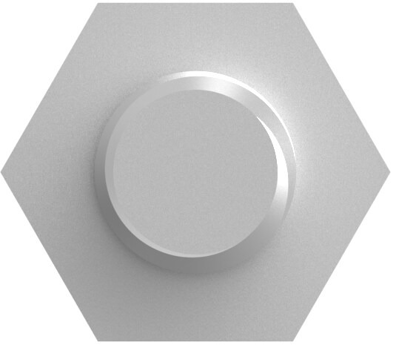

580133-5 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
12.4831 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
12.48 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4831 €
5 pcs.
11.8405 €
10 pcs.
11.0789 €
25 pcs.
10.1031 €
*incl. VAT plus shipping costs
Subject to prior sale

Power Terminals, 580133-5, TE Connectivity

Footprint: 6.35x3.18 mm, Power Terminal Type: Power Tap, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 10, PCB Mount Orientation: Vertical, Terminal Profile: Standard, Terminal Fabrication: Screw Machined, Contact Mating Area Plating Material: Silver, Contact Mating Area Plating Material Thickness: 5.08 µm, PCB Contact Termination Area Plating Material: Silver, PCB Contact Termination Area Plating Material Thickness: 5.08 µm, Termination Method to Wire & Cable: Tap Screw, PCB Thickness (Recommended): 1.57-3.18 mm, Overall Terminal Length: 45.21 mm, Operating Temperature Range: -55-105 °C, Circuit Application: Power, Packaging Method: Box

Technical specifications
Filter Property Value
Connection press connection
Material brass, silver-plated
Design straight
Version round plug
diameter 3.6 mm
Isolated No
Length 45.21 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
