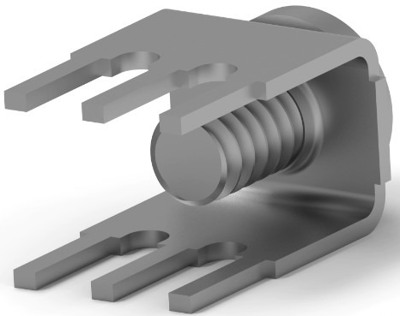

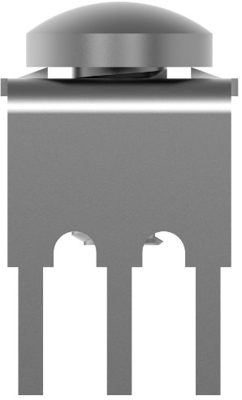

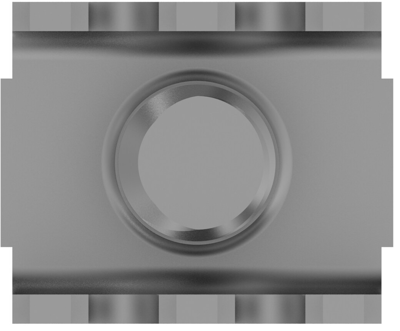

Power Terminals, 55323-9, AMP
Footprint: 6.35x3.18 mm, Power Terminal Type: Power Tap, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 6, PCB Mount Orientation: Vertical, Terminal Profile: Standard, Contact Mating Area Plating Material Finish: Bright, Terminal Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Tin-Lead, Contact Mating Area Plating Material Thickness: 30.81 µm, PCB Contact Termination Area Plating Material: Tin-Lead, Termination Method to Wire & Cable: Tap Screw, Connector Mounting Type: Board Mount, Screw Size: 6-32, Centerline (Pitch): 3.18 mm, PCB Thickness (Recommended): 1.57-3.18 mm, Overall Terminal Length: 8.63 mm, Operating Temperature Range: -55-85 °C, Circuit Application: Power, Packaging Method: Carton
