53264-2 | AMP

Foil connector, Ø 2.62 mm, L 25.4 mm, uninsulated, 0.8-2.0 mm², AWG 18-14, 53264-2

Order No.: 39P2255
EAN: 4099889615289
MPN:
53264-2

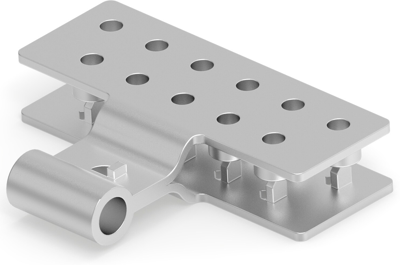

53264-2 AMP Flat Plugs Image 1

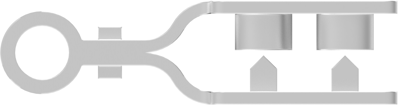

53264-2 AMP Flat Plugs Image 2

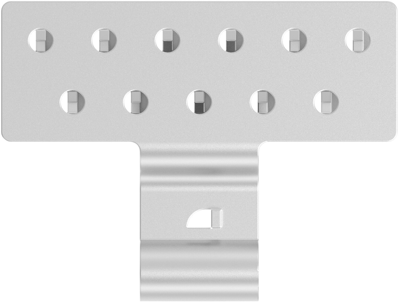

53264-2 AMP Flat Plugs Image 3
53264-2 AMP Flat Plugs Image 4
53264-2 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Standard delivery time from the manufacturer is: 40 Weeks
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6537 €
25 pcs.
2.4752 €
50 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

Foil Terminals, 53264-2, AMP

Insulated: No, Face: Double, Body Type: Type 4, Foil Terminal Plating Material: Tin, Foil Terminal Terminal Type: Barrel,Tap, Foil Thickness (Max): 0.76 mm, Barrel Wire Size: 18-14 AWG, Barrel Wire Size: 0.8-2 mm², 0.8-3 mm², Wire Size: 18-14 AWG, Wire Size: 0.8-2 mm², 0.8-3 mm², Insulation Requirement: Uninsulated, Operating Temperature Range: 150 °C, Packaging Quantity: 1000, Foil Terminal Packaging Method: Box, Comment: Accepts 18-12 AWG stranded, 18-14 AWG solid

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 18-14
Version foil connector
diameter 2.62 mm
Isolated No
Cable cross-section 0.8-2.0 mm²
Length 25.4 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85369040
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
