52584 | AMP

Foil connector, Ø 1.8 mm, L 19.05 mm, uninsulated, 0.3-1.4 mm², AWG 22-16, 52584

Order No.: 39P2259
EAN: 4099889615326
MPN:
52584

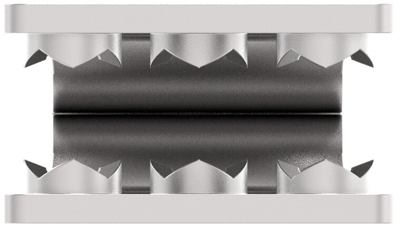

52584 AMP Flat Plugs Image 1

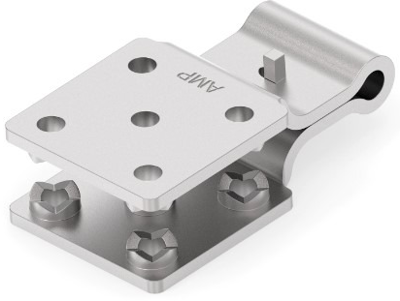

52584 AMP Flat Plugs Image 2

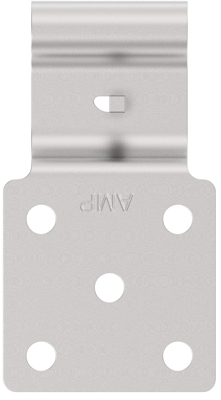

52584 AMP Flat Plugs Image 3

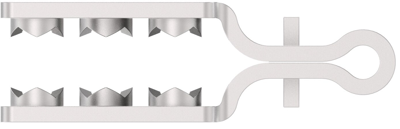

52584 AMP Flat Plugs Image 4

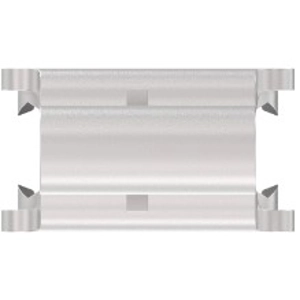

52584 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available in 5 Days: 10,604 pcs. - if ordered today
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0472 €
25 pcs.
0.9758 €
50 pcs.
0.8806 €
*incl. VAT plus shipping costs
Subject to prior sale

Foil Terminals, 52584, AMP

Insulated: No, Face: Double, Body Type: Type 3, Foil Terminal Plating Material: Tin, Foil Terminal Terminal Type: Barrel,Tap, Foil Thickness (Max): 0.76 mm, Foil Terminal Tab Width: 8.41 mm, Barrel Wire Size: 22-16 AWG, Barrel Wire Size: 0.3-1.4 mm², Wire Size: 22-16 AWG, Wire Size: 0.3-1.4 mm², Insulation Requirement: Uninsulated, Operating Temperature Range: 150 °C, Packaging Quantity: 1000, Foil Terminal Packaging Method: Box

Technical specifications
Filter Property Value
Material copper, tin-plated
Version foil connector
diameter 1.8 mm
Isolated No
AWG cross-section AWG 22-16
Length 19.05 mm
Cable cross-section 0.3-1.4 mm²
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
