42868-1 | AMP

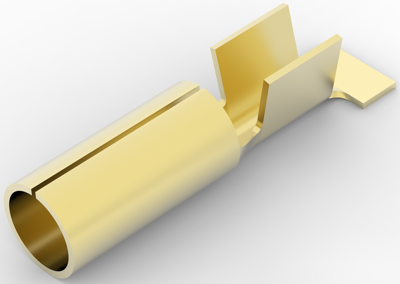

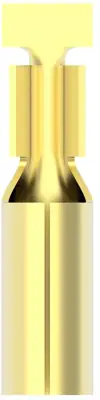

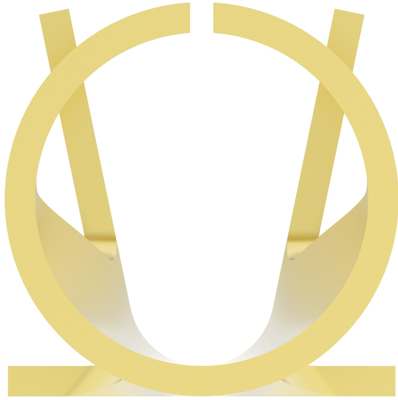

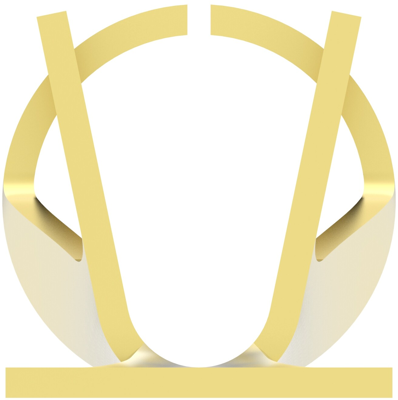

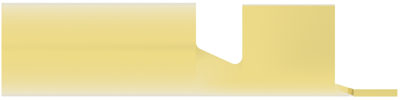

Round plug, Ø 4.57 mm, L 18.28 mm, uninsulated, straight, 2.0-6.0 mm², AWG 14-10, 42868-1
Order No.: 35P2577
EAN: 4099889614923
MPN:
42868-1
Unit Price (€ / pc.)
0.1380 € *
Standard delivery time from the manufacturer is: 26 Weeks
Wire end ferrule, 42868-1, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Unplated, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4.57 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 14-10 AWG, Wire Size: 2-6 mm², Wire Size: 9600 CMA, Barrel Inside Diameter: 1.9 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.39 mm, Operating Temperature Range: -40-105 °C, Heavy Duty: No, Packaging Quantity: 10000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.0-6.0 mm² | |
| Material | brass | |
| Design | straight | |
| AWG cross-section | AWG 14-10 | |
| diameter | 4.57 mm | |
| Length | 18.28 mm | |
| Connection | crimp connection | |
| Version | round plug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
