41292 | AMP

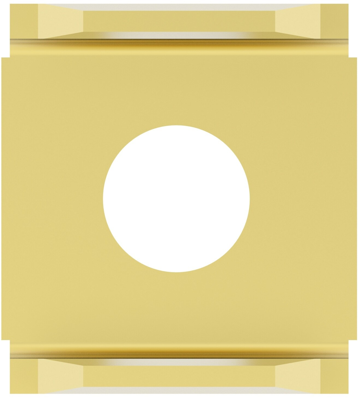

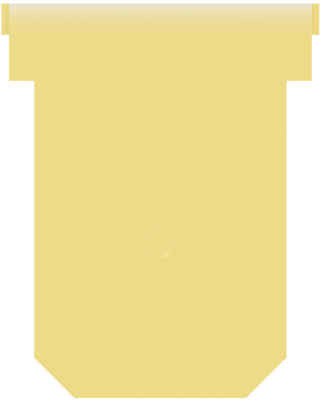

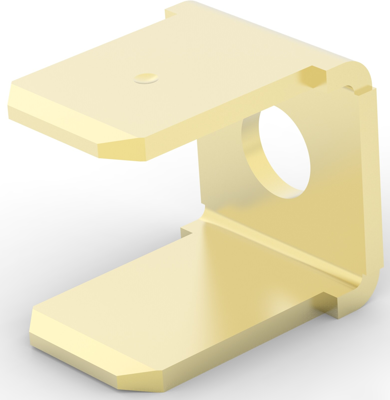

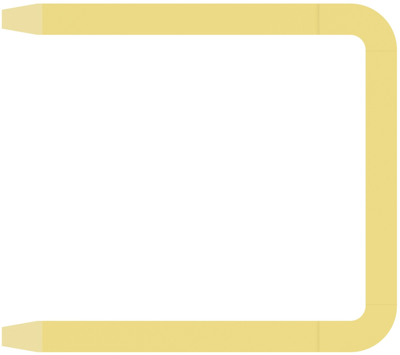

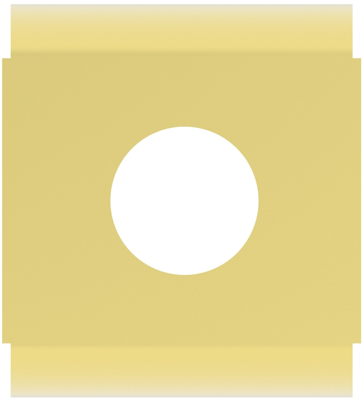

Flat plug distributor, 1 x 2 contacts, 6.35 x 0.81 mm, L 27.05 mm, uninsulated, angled, 41292
Unit Price (€ / pc.)
0.4879 € *
Available in 5 Days: 36,055 pcs. - if ordered today
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.4284 €
50 pcs.
0.3808 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminals, 41292, AMP
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 90°, PCB Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Right Angle, PCB Terminal Termination Method: Screw, Stud Diameter: 3.3 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.3 mm, Height Above PC Board: 9.91 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, CSA Certified: Yes, Packaging Quantity: 500, PCB Terminal Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug distributor, 1 x 2 contacts | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Connection | screw connection | |
| Material | brass | |
| Angulation | 90° | |
| Design | angled | |
| Isolated | No | |
| Length | 27.05 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
