4-1601035-1 | AMP

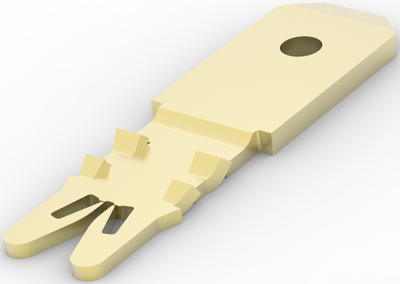

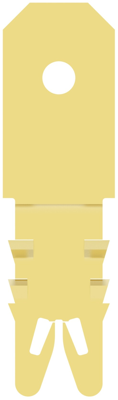

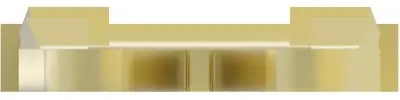

Faston plug, 4.75 x 0.81 mm, L 16.64 mm, uninsulated, straight, 0.16-1.02 mm², AWG 34-18, 4-1601035-1
Order No.: 35P4288
EAN: 4099889615050
MPN:
4-1601035-1
Unit Price (€ / pc.)
0.2071 € *
Available in 5 Days: 20,372 pcs. - if ordered today
Total Price:
2.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2071 €
50 pcs.
0.1916 €
100 pcs.
0.1785 €
250 pcs.
0.1618 €
*incl. VAT plus shipping costs
Subject to prior sale
Magnet Wire Terminals, 4-1601035-1, AMP
Magnet Wire Terminal Wire/Cable Type: Magnet Wire, Cavity Size: Size 1, Magnet Wire Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, Magnet Wire Terminal Terminal Type: Tab, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: IDC Standard, Magnet Wire Terminal Mating Retention Type: Barbs,Hole, Magnet Wire Terminal Mating Tab Width: 4.75 mm, Magnet Wire Terminal Mating Tab Thickness: 0.81 mm, Terminal Height: 8.38 mm, Magnet Wire Size: 0.16-1.02 mm, Magnet Wire Size: 34-18 AWG, Insulation Requirement: Uninsulated, Magnet Wire Terminal Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 34-18 | |
| Length | 16.64 mm | |
| Plug width x plug thickness | 4.75 x 0.81 mm | |
| Design | straight | |
| Connection | IDC connection | |
| Cable cross-section | 0.16-1.02 mm² | |
| Material | brass | |
| Version | faston plug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
