350393-1 | AMP

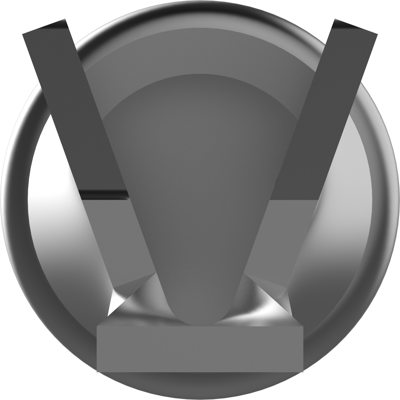

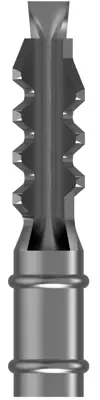

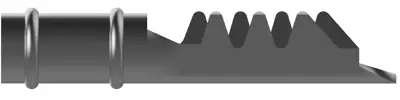

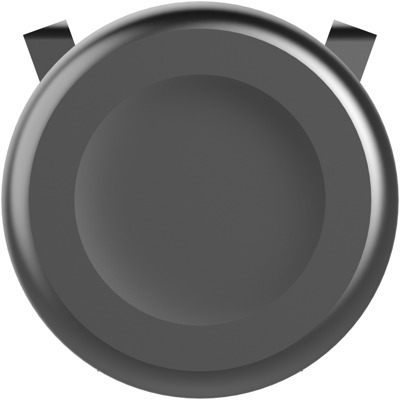

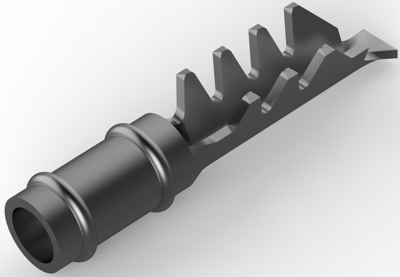

Round plug, Ø 1.47 mm, L 13.97 mm, uninsulated, straight, 350393-1
Order No.: 34P6346
EAN: 4099889613049
MPN:
350393-1
Unit Price (€ / pc.)
0.0762 € *
Standard delivery time from the manufacturer is: 38 Weeks
PCB Terminals, 350393-1, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Socket, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Terminal Wire Insulation Diameter (Max): 1.02 mm, Accepts Wire Insulation Diameter Range: 0.76-1.02 mm, Receptacle Terminal Stock Thickness: 0.25 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 15000, PCB Terminal Packaging Method: Box, Comment: Machine applied applicator required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Material | phosphor bronze, tin-plated | |
| Design | straight | |
| Version | round plug | |
| diameter | 1.47 mm | |
| Isolated | No | |
| Length | 13.97 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
