350196-1 | AMP

Round plug, Ø 1.47 mm, L 10.03 mm, uninsulated, straight, 0.15-0.6 mm², AWG 26-20, 350196-1

Order No.: 34P6349
EAN: 4099889613070
MPN:
350196-1
Series: AMP-IN

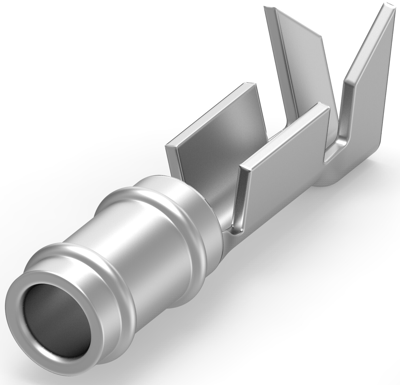

350196-1 AMP Flat Plugs Image 1

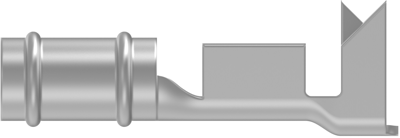

350196-1 AMP Flat Plugs Image 2

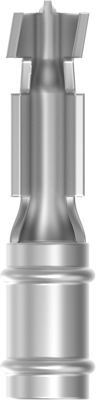

350196-1 AMP Flat Plugs Image 3

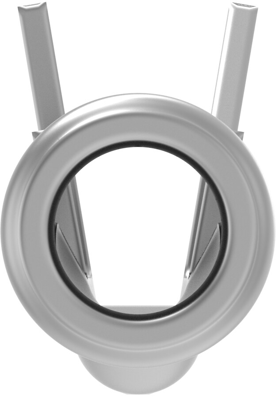

350196-1 AMP Flat Plugs Image 4

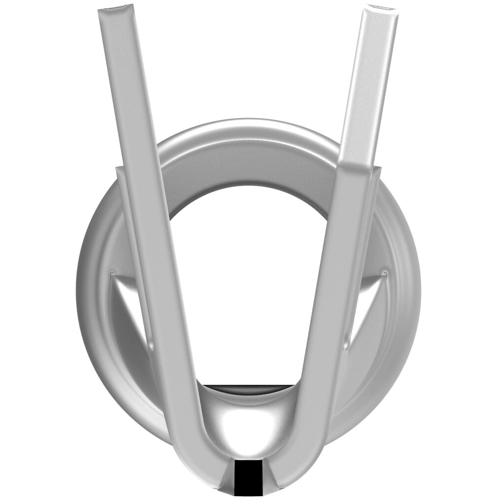

350196-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.0619 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
618.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.0619 €

PCB Terminals, 350196-1, AMP

PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Underplating Material: Copper, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Terminal Wire Insulation Diameter (Max): 2.79 mm, Accepts Wire Insulation Diameter Range: 1.02-2.79 mm, Wire Size: 26-20 AWG, Wire Size: 0.12-0.5 mm², Receptacle Terminal Stock Thickness: 0.25 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 10000, PCB Terminal Packaging Method: Reel, Comment: Machine applied applicator required. Receptacle has an overlap insulation crimp.

Technical specifications
Filter Property Value
Isolated No
Cable cross-section 0.15-0.6 mm²
Version round plug
Connection crimp connection
Material copper, tin-plated
AWG cross-section AWG 26-20
diameter 1.47 mm
Design straight
Length 10.03 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
