350189-1 | AMP

Round plug, Ø 1.47 mm, L 8.38 mm, uninsulated, 0.12-0.4 mm², AWG 26-22, 350189-1

Order No.: 34P6329
EAN: 4099889612912
MPN:
350189-1
Series: AMP-IN

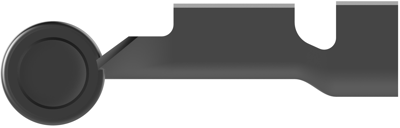

350189-1 AMP Flat Plugs Image 1

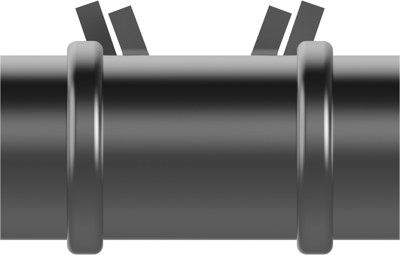

350189-1 AMP Flat Plugs Image 2

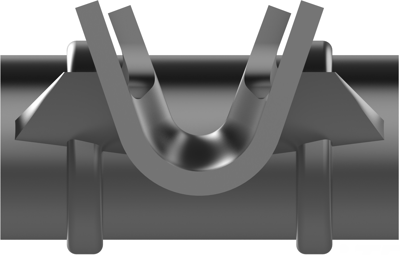

350189-1 AMP Flat Plugs Image 3
350189-1 AMP Flat Plugs Image 4
350189-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1904 € *
Available in 5 Days: 20,784 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1904 €
50 pcs.
0.1761 €
100 pcs.
0.1642 €
250 pcs.
0.1488 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminals, 350189-1, AMP

PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Support Style: Open Barrel, Stud Hole: No, Terminal Angle: 90°, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, PCB Terminal Terminal Orientation: Right Angle, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Terminal Wire Insulation Diameter (Max): 1.65 mm, Accepts Wire Insulation Diameter Range: 0.89-1.65 mm, Wire Size: 26-22 AWG, Wire Size: 0.12-0.4 mm², Receptacle Terminal Stock Thickness: 0.25 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Connection crimp connection
Material bronze, tin-plated
Version round plug
Angulation 90°
diameter 1.47 mm
Isolated No
AWG cross-section AWG 26-22
Length 8.38 mm
Cable cross-section 0.12-0.4 mm²
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
