330716 | AMP

Foil connector, Ø 3.7 mm, L 27.12 mm, uninsulated, 3.0-6.0 mm², AWG 12-10, 330716

Order No.: 39P2251
EAN: 4099889615258
MPN:
330716

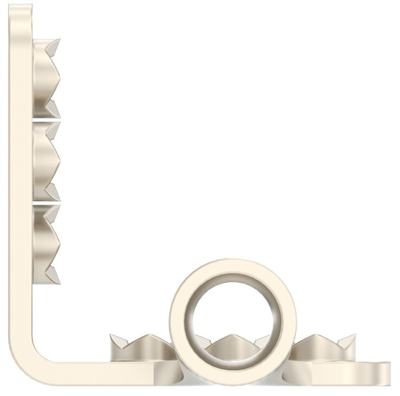

330716 AMP Flat Plugs Image 1

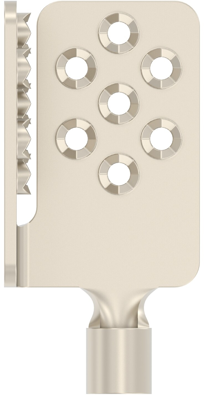

330716 AMP Flat Plugs Image 2

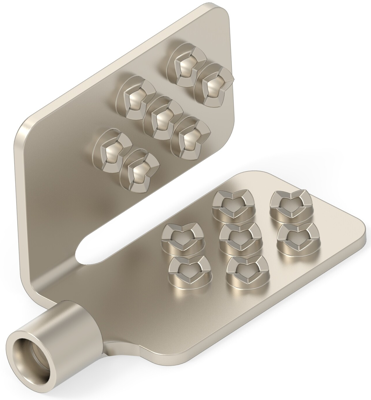

330716 AMP Flat Plugs Image 3

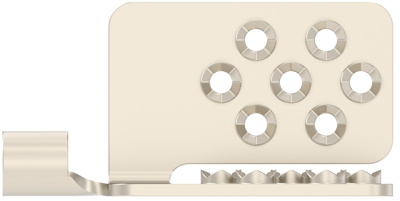

330716 AMP Flat Plugs Image 4

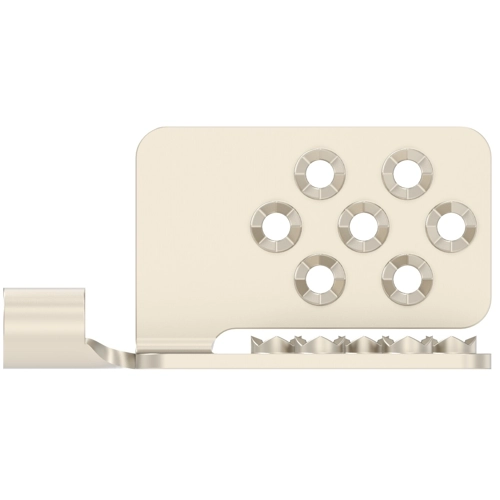

330716 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available in 5 Days: 70,599 pcs. - if ordered today
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

Foil Terminals, 330716, AMP

Insulated: No, Face: Double, Body Type: Type 2, Foil Terminal Plating Material: Nickel, Foil Terminal Terminal Type: Barrel, Foil Thickness (Max): 0.76 mm, Barrel Wire Size: 12-10 AWG, Barrel Wire Size: 3-6 mm², Wire Size: 12-10 AWG, Wire Size: 3-6 mm², Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Packaging Quantity: 500, Foil Terminal Packaging Method: Box

Technical specifications
Filter Property Value
Version foil connector
Material copper, nickel-plated
Length 27.12 mm
Isolated No
Cable cross-section 3.0-6.0 mm²
diameter 3.7 mm
AWG cross-section AWG 12-10
Logistics
Property Value
Customs tariff number 85369010
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
