329254 | AMP

Foil connector, Ø 3.86 mm, L 11.53 mm, uninsulated, straight, 3.0-6.0 mm², AWG 12-10, 329254

Order No.: 39P2249
EAN: 4099889615234
MPN:
329254

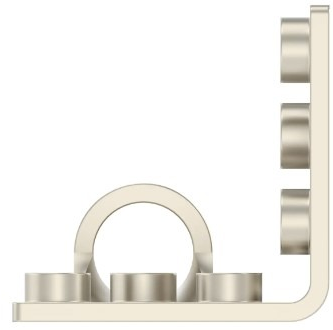

329254 AMP Flat Plugs Image 1

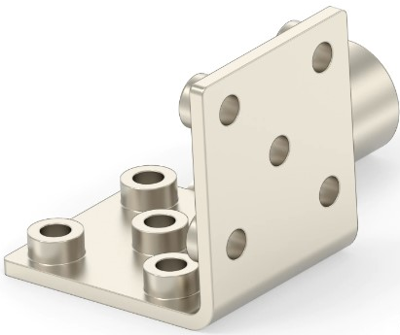

329254 AMP Flat Plugs Image 2

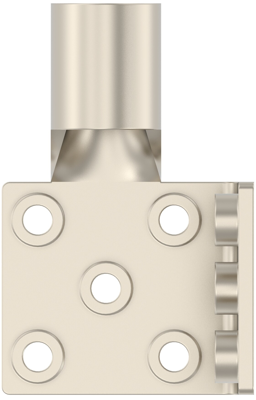

329254 AMP Flat Plugs Image 3

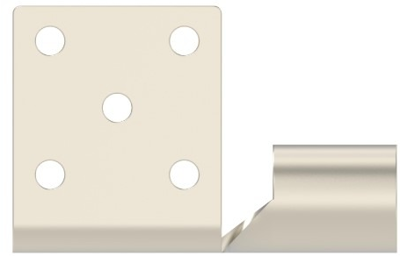

329254 AMP Flat Plugs Image 4

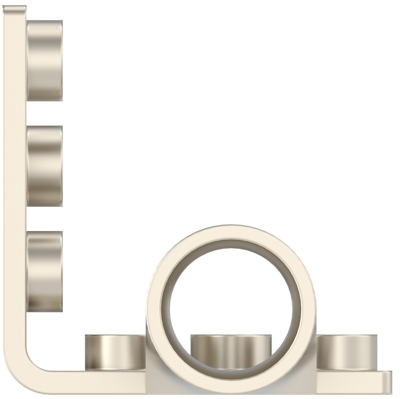

329254 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.6783 € *
Available in 5 Days: 934 pcs. - if ordered today
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6783 €
10 pcs.
0.6307 €
25 pcs.
0.5831 €
50 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale

Foil Terminals, 329254, TE Connectivity

Face: Double, Body Type: Type 1, Foil Terminal Plating Material: Nickel, Foil Terminal Terminal Type: Barrel, Foil Thickness (Max): 0.76 mm, Barrel Wire Size: 12-10 AWG, Barrel Wire Size: 3-6 mm², Wire Size: 12-10 AWG, Wire Size: 3-6 mm², Operating Temperature Range: 343 °C, Packaging Quantity: 500, Foil Terminal Packaging Method: Box

Technical specifications
Filter Property Value
Material copper, nickel-plated
AWG cross-section AWG 12-10
Version foil connector
diameter 3.86 mm
Isolated No
Cable cross-section 3.0-6.0 mm²
Design straight
Length 11.53 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
