327748 | AMP

Faston plug, 3.96 x 0.84 mm, L 20.54 mm, insulated, straight, blue, 1.25-2.0 mm², AWG 16 to 14, 327748

Order No.: 39P3524
EAN: 4099889615463
MPN:
327748
Series: PIDG
327748 AMP Flat Plugs Image 1
327748 AMP Flat Plugs Image 2
327748 AMP Flat Plugs Image 3

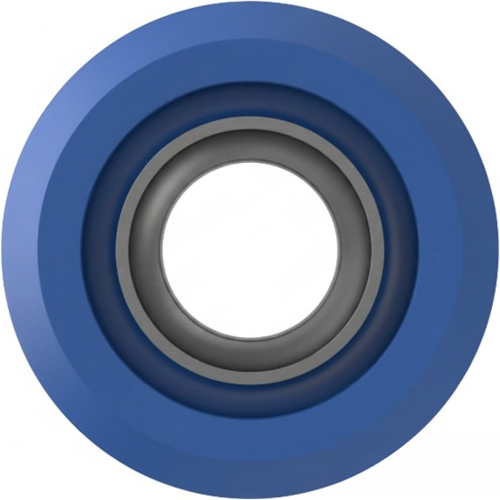

327748 AMP Flat Plugs Image 4

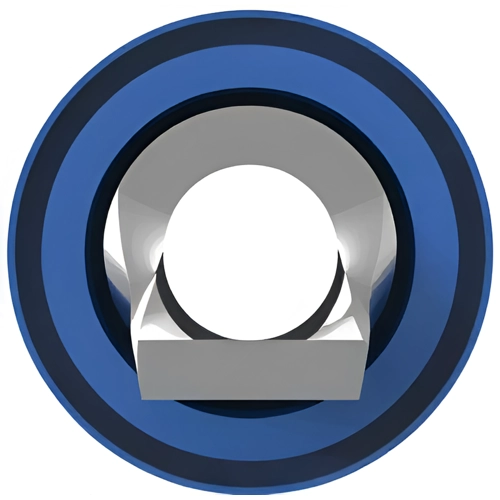

327748 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
10 pcs.
1.1186 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Crimp Wire Pins, Tabs and Ferrules, 327748, AMP

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Support Style: Insulation Support, Insulation Material: Nylon, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Tab, Crimp Wire Pin, Tab & Ferrule Terminal Type: Tab, Tab Thickness: 0.84 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Tab Width: 20.54 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 4.32 mm, Accepts Wire Insulation Diameter Range: 4.32 mm, Wire Size: 16-14 AWG, Wire Size: 1.25-2 mm², Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece, Barrel Color: Blue

Technical specifications
Filter Property Value
Insulation colour blue
Plug width x plug thickness 3.96 x 0.84 mm
Material copper, tin-plated
Isolated Yes
Length 20.54 mm
Cable cross-section 1.25-2.0 mm²
AWG cross-section AWG 16 to 14
Design straight
Connection crimp connection
Version faston plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin TH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
