322445 | AMP

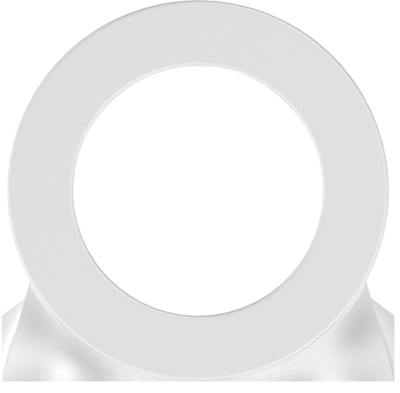

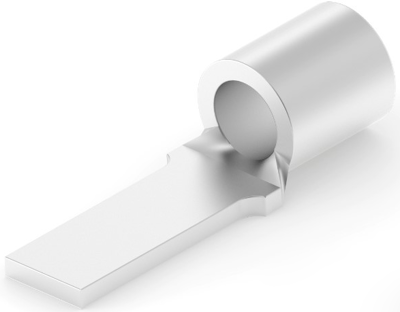

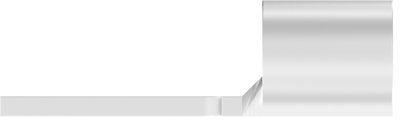

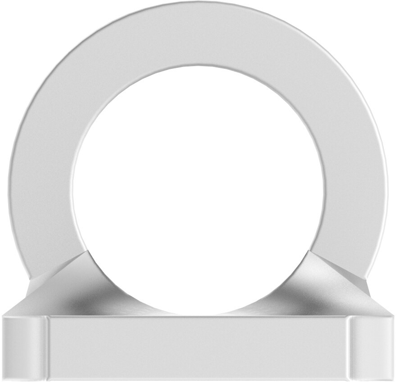

Faston plug, L 23.8 mm, uninsulated, straight, 322445
Order No.: 39P8635
EAN: 4099889615531
MPN:
322445
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 31 Weeks
Wire end ferrule, 322445, TE Connectivity
Shape Description: TAB-002, Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Copper,Tin, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Tab, Tab Thickness: 1.3 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: Without, Crimp Wire Pin, Tab & Ferrule Tab Width: 23.8 mm, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100-20800 CMA, Barrel Inside Diameter: 4.5 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| Design | straight | |
| Version | faston plug | |
| Isolated | No | |
| Length | 23.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
