Unit Price (€ / pc.)
0.2225 € *
Available in 5 Days: 55,000 pcs. - if ordered today
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2225 €
100 pcs.
0.1952 €
250 pcs.
0.1725 €
500 pcs.
0.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

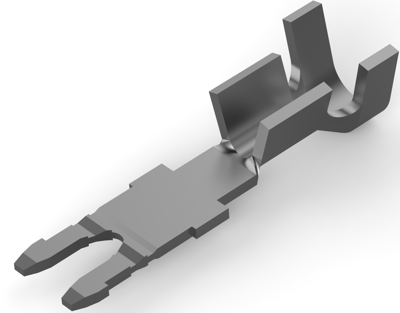

Magnet Wire Terminals, 281623-2, TE Connectivity
Sealable: No, Magnet Wire Terminal Plating Material: Tin, Magnet Wire Terminal Terminal Type: Poke-In, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: Crimp,IDC Standard, Crimp Area Length: 7.87 mm, Wire Insulation Support: With, Terminal Height: 3.37 mm, Magnet Wire Terminal Wire Insulation Diameter (Max): 3 mm, Accepts Wire Insulation Diameter Range: 3 mm, Wire Size: 22-18 AWG, Wire Size: 0.326-0.8 mm², Magnet Wire Terminal Packaging Method: Reel,Reel/Carton
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 22-18 | |
| Length | 18.4 mm | |
| Cable cross-section | 0.32-0.8 mm² | |
| Version | enameled wire contact | |
| Design | straight | |
| Material | brass, tin-plated | |
| Connection | crimp connection |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
