181949-1 | AMP

Faston plug, 6.3 x 0.8 mm, L 16.5 mm, uninsulated, angled, 181949-1

Order No.: 34P8497
EAN: 4099889613704
MPN:
181949-1
Series: FASTON

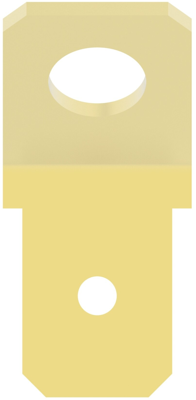

181949-1 AMP Flat Plugs Image 1

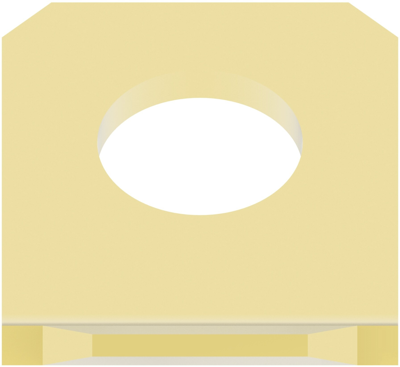

181949-1 AMP Flat Plugs Image 2

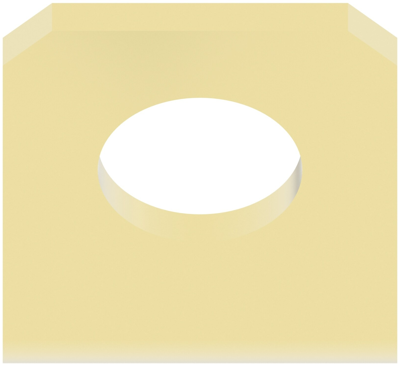

181949-1 AMP Flat Plugs Image 3

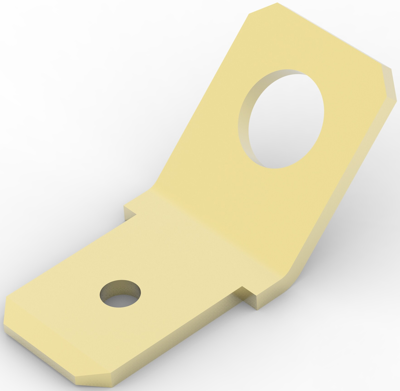

181949-1 AMP Flat Plugs Image 4

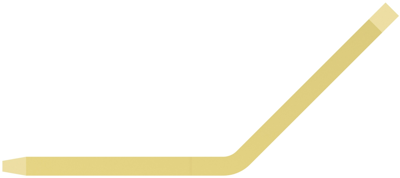

181949-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2428 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
24.28 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2428 €
250 pcs.
0.2237 €
500 pcs.
0.2083 €
1000 pcs.
0.1880 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminals, 181949-1, AMP

FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, PCB Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: 45 Bend, PCB Terminal Termination Method: Screw, Stud Diameter: 4.1 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 4.1 mm, Height Above PC Board: 7.7 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 5000, PCB Terminal Packaging Method: Bag

Technical specifications
Filter Property Value
Plug width x plug thickness 6.3 x 0.8 mm
Material brass
Version faston plug
Isolated No
Angulation 45°
Design angled
Length 16.5 mm
Connection screw connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
