170001-3 | AMP

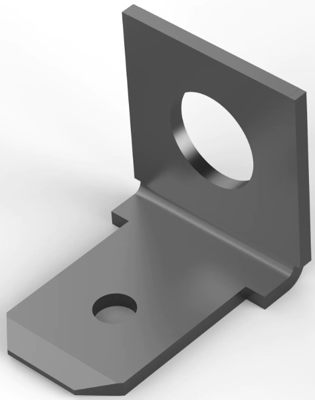

Faston plug, 4.75 x 0.51 mm, uninsulated, angled, 170001-3
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 9,220 pcs. - if ordered today
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3927 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3082 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 170001-3, TE Connectivity
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 90°, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 4.75, PCB Terminal Terminal Orientation: Right Angle, PCB Terminal Termination Method: Screw, Stud Diameter: 3.3 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 3.3 mm, Operating Temperature Range: -40-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | angled | |
| Angulation | 90° | |
| Version | faston plug | |
| Connection | screw connection | |
| Plug width x plug thickness | 4.75 x 0.51 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
