165446 | AMP

Faston plug, 1 x 0.83 mm, L 19.6 mm, insulated, straight, red, 0.26-1.6 mm², AWG 22 to 16, 165446

Order No.: 39P3375
EAN: 4099889615418
MPN:
165446
Series: PIDG

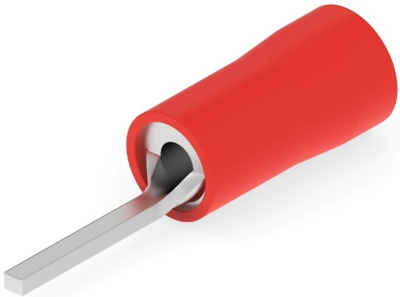

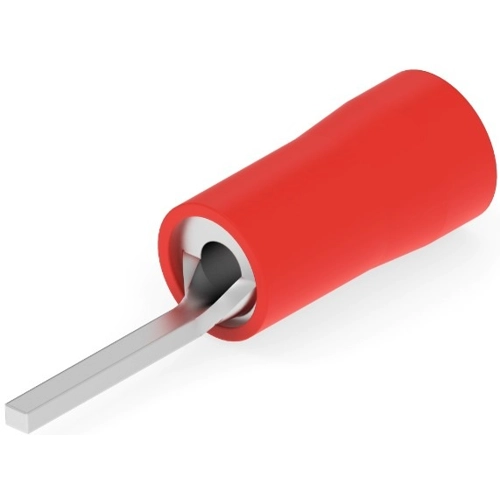

165446 AMP Flat Plugs Image 1

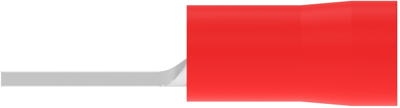

165446 AMP Flat Plugs Image 2

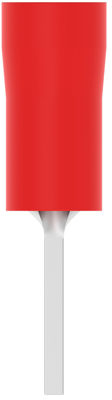

165446 AMP Flat Plugs Image 3

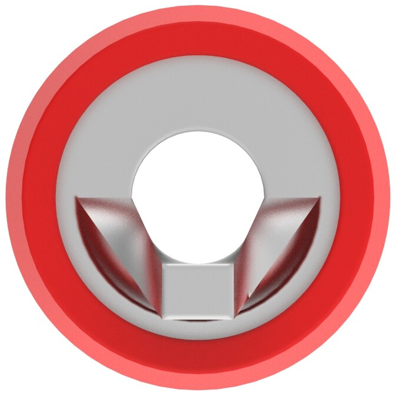

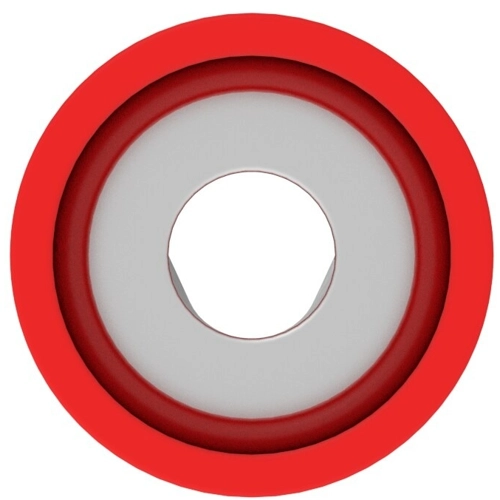

165446 AMP Flat Plugs Image 4

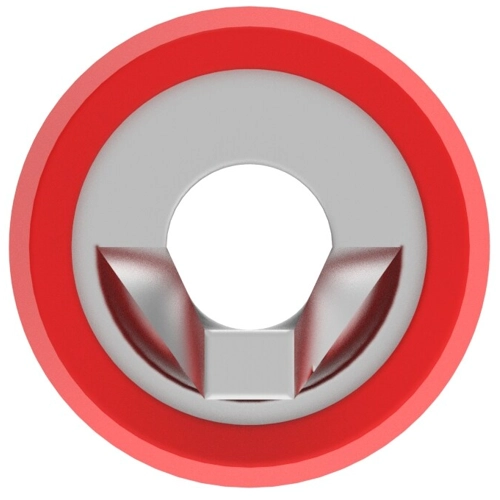

165446 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
2.1420 € *
Available in 5 Days: 13,238 pcs. - if ordered today
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1420 €
10 pcs.
1.9873 €
25 pcs.
1.8445 €
50 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

Wire end ferrule, 165446, TE Connectivity

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Support Style: Insulation Support, Insulation Material: Nylon, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Tab, Tab Thickness: 0.83 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Tab Width: 1 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.6 mm, Accepts Wire Insulation Diameter Range: 2.67-3.6 mm, Wire Size: 22-16 AWG, Wire Size: 0.26-1.6 mm², Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 1000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece, Barrel Color: Red

Technical specifications
Filter Property Value
Plug width x plug thickness 1 x 0.83 mm
Material copper, tin-plated
AWG cross-section AWG 22 to 16
Version faston plug
Isolated Yes
Cable cross-section 0.26-1.6 mm²
Insulation colour red
Design straight
Length 19.6 mm
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
