160650-2 | AMP

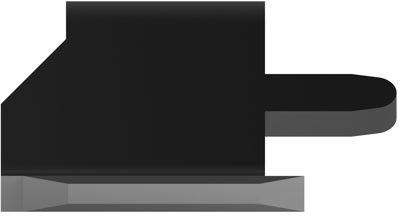

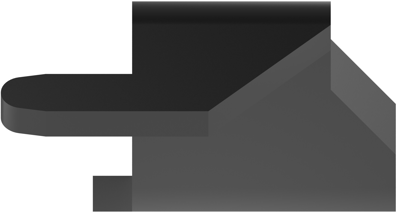

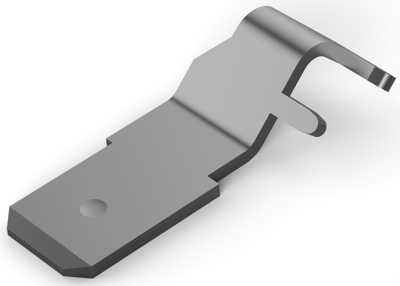

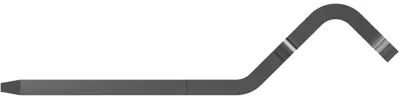

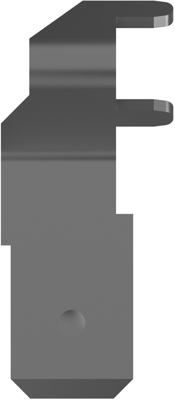

Faston plug, 6.35 x 0.81 mm, uninsulated, angled, 160650-2
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Available in 5 Days: 41,086 pcs.
Leadtime: 1 Week **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
550 pcs.
0.1618 €
2700 pcs.
0.1523 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 160650-2, AMP
FASTON: Yes, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: 90°, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Nickel, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Through Hole - Solder, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 2.36-6.35 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 1.25 mm, Height Above PC Board: 7.36 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Material | tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
