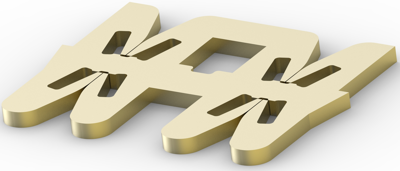

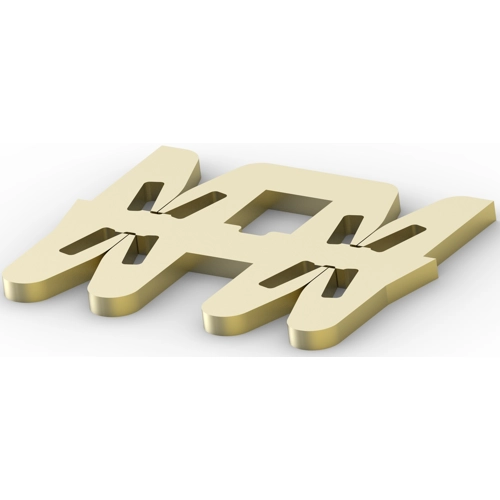

Magnet Wire Terminals, 1601046-1, AMP
Magnet Wire Terminal Wire/Cable Type: Lead Wire,Magnet Wire, Magnet Wire Terminal Plating Material: Unplated, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: IDC Standard, Magnet Wire Terminal Mating Retention Type: Barbs, Terminal Height: 3.17 mm, Magnet Wire Terminal Wire Insulation Diameter (Max): 2.9 mm, Accepts Wire Insulation Diameter Range: 2.9 mm, Lead Wire Size: 0.3-0.8 mm², Lead Wire Size: 22-18 AWG, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-175 °C, Packaging Quantity: 50000, Magnet Wire Terminal Packaging Method: Reel, Comment: Lead wire may be stranded, solid or bonded with 105° C PVC insulation. Contact TE when using lead wires with other types of insulation. Magnet wire 30 AWG or smaller also requires a wrap post per P/N 1601447,Recommended Pocket P/N 1601433,Recommended Pocket P/N 1601440
