141462-1 | AMP

Round plug, Ø 3 mm, L 24 mm, insulated, straight, red, 0.5-1.5 mm², AWG 20-16, 141462-1

Order No.: 39P3231
EAN: 4099889615388
MPN:
141462-1
Series: PIDG

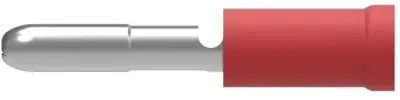

141462-1 AMP Flat Plugs Image 1

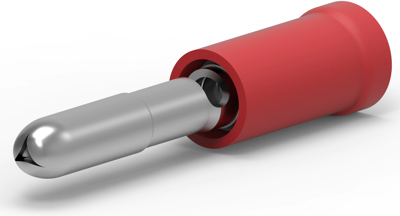

141462-1 AMP Flat Plugs Image 2

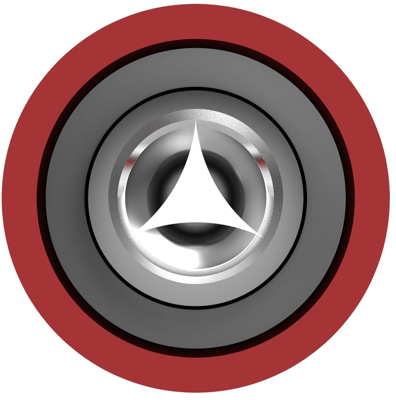

141462-1 AMP Flat Plugs Image 3

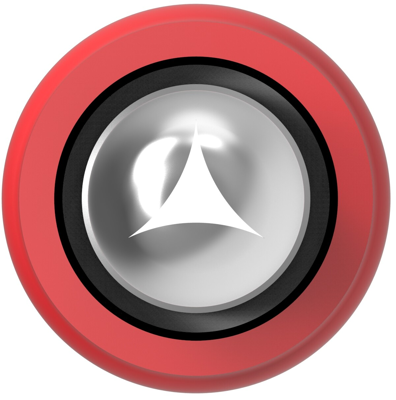

141462-1 AMP Flat Plugs Image 4

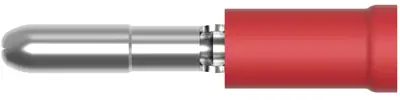

141462-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
1.4280 € *
Available in 5 Days: 6,322 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4280 €
10 pcs.
1.3209 €
25 pcs.
1.2257 €
50 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale

Crimp Wire Pins, Tabs and Ferrules, 141462-1, AMP

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Support Style: Insulation Support, Insulation Material: Nylon, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Shur Plug, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.43 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Diameter:, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.3 mm, Accepts Wire Insulation Diameter Range: 3.3 mm, Wire Size: 20-15 AWG, Wire Size: 0.5-1.5 mm², Wire Size: 1022-3257 CMA, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 500, Crimp Wire Pin, Tab & Ferrule Packaging Method: Box, Barrel Color: Red

Technical specifications
Filter Property Value
Material brass, tin-plated
AWG cross-section AWG 20-16
Version round plug
diameter 3 mm
Isolated Yes
Cable cross-section 0.5-1.5 mm²
Insulation colour red
Design straight
Length 24 mm
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
