140971-2 | AMP

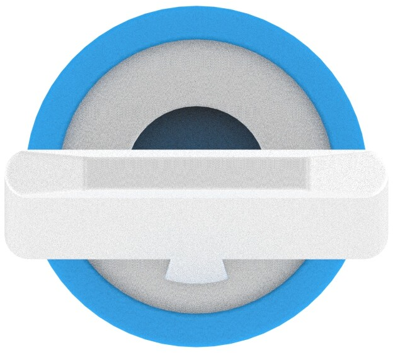

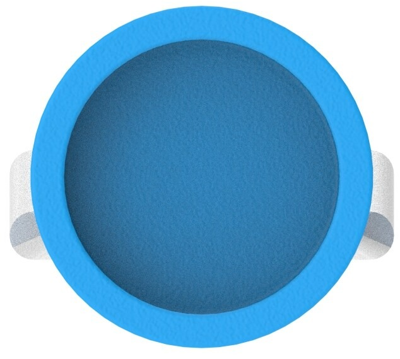

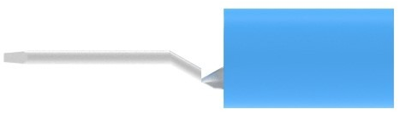

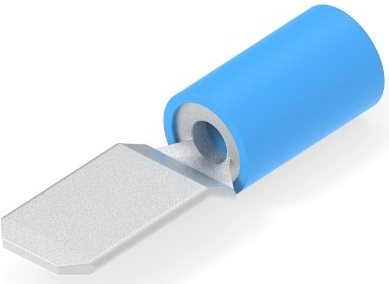

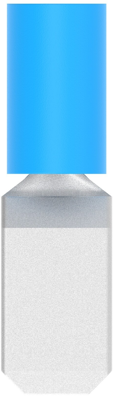

Faston plug, 6.35 x 0.81 mm, L 23.5 mm, insulated, straight, blue, 1.3-2.6 mm², AWG 16-14, 140971-2
Unit Price (€ / pc.)
0.8925 € *
Available in 5 Days: 8,442 pcs. - if ordered today
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.8092 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick Disconnects, 140971-2, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: Yes, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: Without, Overall Length: 23.5 mm, Wire Size: 16-13.5 AWG, Wire Size: 1.3-2 mm², Wire Size: 2565-5131 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Bag, Barrel Color: Blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Cable cross-section | 1.3-2.6 mm² | |
| AWG cross-section | AWG 16-14 | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Insulation colour | blue | |
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| Design | straight | |
| Isolated | Yes | |
| Length | 23.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
