140896-2 | AMP

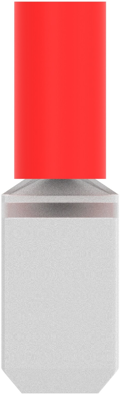

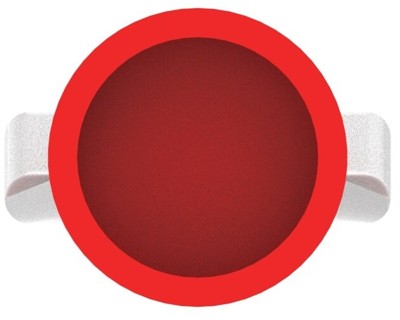

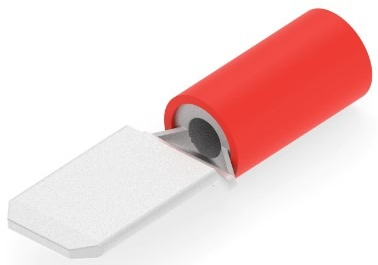

Faston plug, 6.35 x 0.81 mm, L 23.5 mm, insulated, straight, red, 0.5-1.0 mm², AWG 20-18, 140896-2
Unit Price (€ / pc.)
0.9877 € *
Available: 660 pcs.
Available in 5 Days: 38,639 pcs. - if ordered today
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
25 pcs.
0.8568 €
50 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 140896-2, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: Yes, Connection Capacity: Single, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: Without, Overall Length: 23.5 mm, Wire Size: 20-17 AWG, Wire Size: 0.5-1 mm², Wire Size: 992-1980 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 1000, Packaging Method: Box, Barrel Color: Red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| Design | straight | |
| Insulation colour | red | |
| Version | faston plug | |
| Isolated | Yes | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| AWG cross-section | AWG 20-18 | |
| Length | 23.5 mm | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
