131331 | AMP

Faston plug, 2.921 x 0.79 mm, L 23 mm, insulated, straight, red, 0.5-1.0 mm², AWG 22 to 16, 131331

Order No.: 39P3500
EAN: 4099889615432
MPN:
131331
Series: PIDG

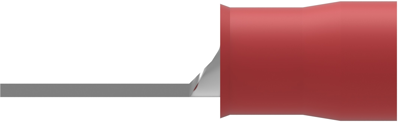

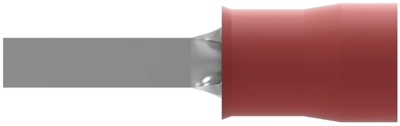

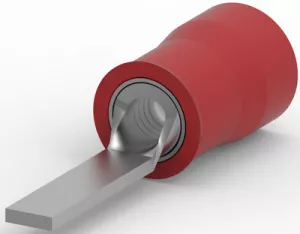

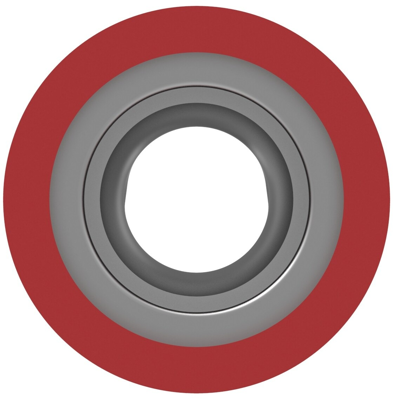

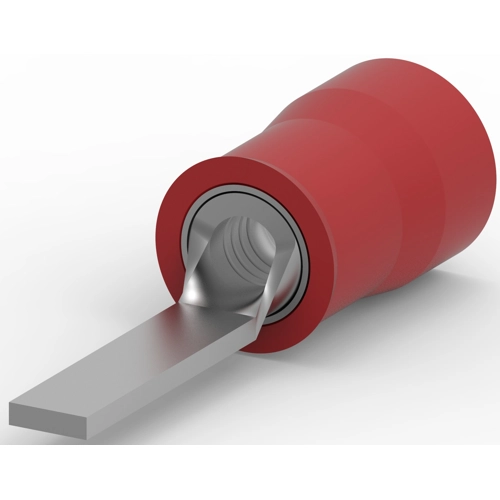

131331 AMP Flat Plugs Image 1
131331 AMP Flat Plugs Image 2
131331 AMP Flat Plugs Image 3

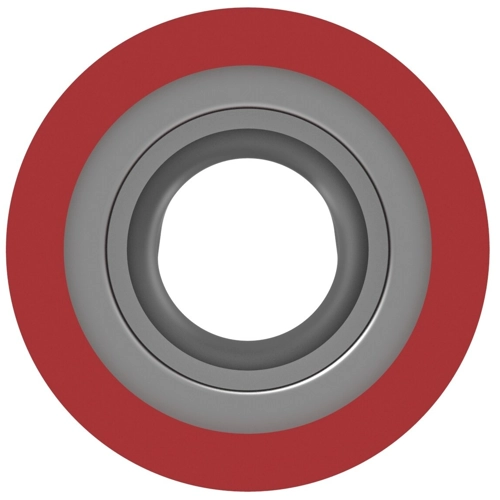

131331 AMP Flat Plugs Image 4

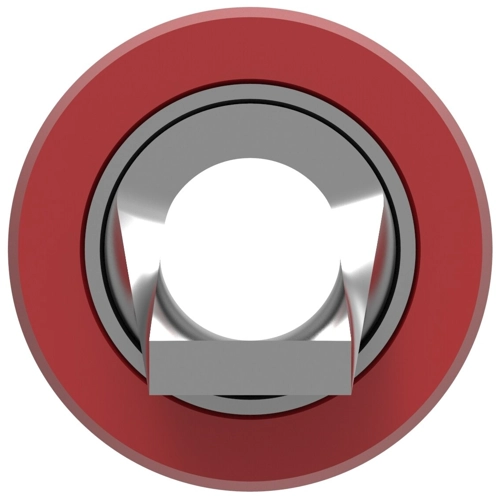

131331 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5474 €
10 pcs.
0.5117 €
25 pcs.
0.4760 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale

Wire end ferrule, 131331, TE Connectivity

Shape Description: WIRE PIN-004, Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Insulation Sleeve Material: Nylon, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal Length: 12.4 mm, Terminal & Splice Type: Tab, Crimp Wire Pin, Tab & Ferrule Terminal Type: Tab, Tab Thickness: 0.79 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: With, DIN Wire Size: 0.5-1 mm², Crimp Wire Pin, Tab & Ferrule Tab Width: 2.92 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.56 mm, Accepts Wire Insulation Diameter Range: 3.56 mm, Wire Size: 22-16 AWG, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 1000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece, Barrel Color: Red

Technical specifications
Filter Property Value
Plug width x plug thickness 2.921 x 0.79 mm
Material copper, tin-plated
AWG cross-section AWG 22 to 16
Version faston plug
Isolated Yes
Cable cross-section 0.5-1.0 mm²
Insulation colour red
Design straight
Length 23 mm
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
