1217002-1 | AMP

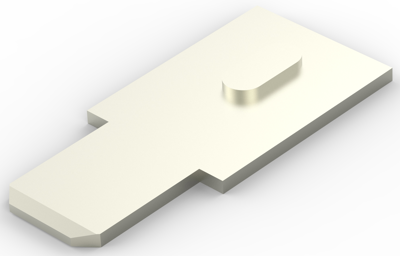

Faston plug, 6.35 x 0.81 mm, L 20.96 mm, uninsulated, straight, 1217002-1
Unit Price (€ / pc.)
0.1226 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
12,257.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
100000 pcs.
0.1226 €
PCB Terminals, 1217002-1, AMP
FASTON: Yes, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, Plating Thickness: 30.81 µm, PCB Terminal Plating Material: Nickel, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Copper, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole - Solder, Wire Insulation Support: Without, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, CSA Certified: Yes, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Isolated | No | |
| Length | 20.96 mm | |
| Version | faston plug | |
| Design | straight | |
| Material | steel, nickel-plated | |
| Connection | solder connection | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
