746610-3 | AMP
Pin header, 16 pole, 2 rows, pitch 2.54 mm, solder pin, pin header, tin-plated, 746610-3
Order No.: 72P1342
MPN:
746610-3
Unit Price (€ / pc.)
4.5339 € *
Available in 5 Days: 3,197 pcs. - if ordered today
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.2126 €
25 pcs.
3.9270 €
50 pcs.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale

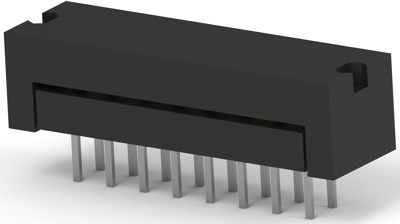

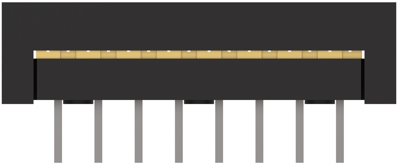

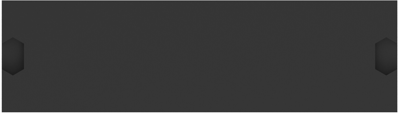

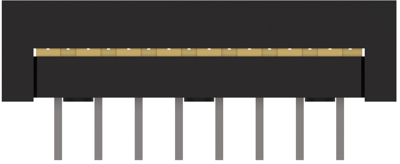

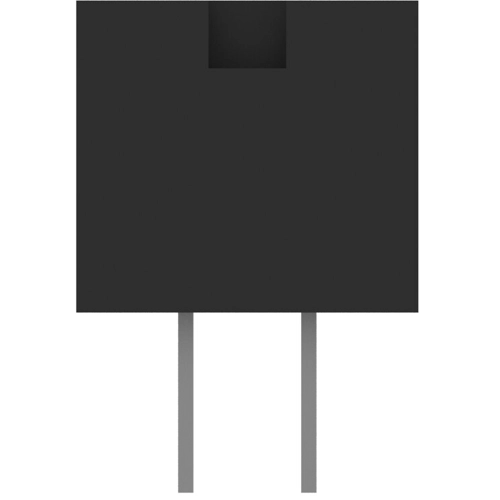

Connector assembly, 746610-3, AMP
Ribbon cable connector, Wire-to-Board, 16 Position, 2.54 mm Centerline, Vertical, Through Hole-Solder, 2 Row, Plug, Standard profile.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 16 pole | |
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Version | pin header | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
