650889-5 | AMP

Male connector, type R, 96 pole, a-b-c, pitch 2.54 mm, straight, 650889-5

Order No.: 36P7590
EAN: 4099891012274
MPN:
650889-5

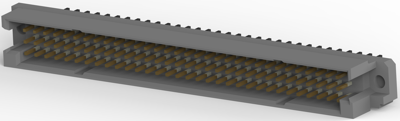

650889-5 AMP DIN PCB Connectors Image 1

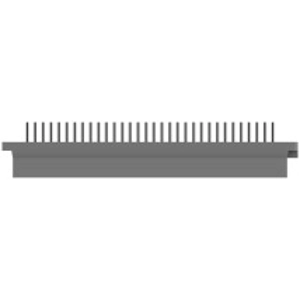

650889-5 AMP DIN PCB Connectors Image 2
650889-5 AMP DIN PCB Connectors Image 3
Image may differ
Unit Price (€ / pc.)
6.7473 € *
Available in 5 Days: 295 pcs. - if ordered today
Total Price:
4,048.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
6.7473 €

Eurocard Connector, 650889-5, AMP

Connector & Housing Type: Plug, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Male connector, DIN Size: Standard, Number of Positions: 96, Number of Rows: 3, PCB Mount Orientation: Vertical, Number of Columns: 32, Number of Power or Coaxial Positions: 96, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 1.5 A, Termination Method to Male connector: Through Hole - Press-Fit, Termination Post & Tail Length: 6.35 mm, PCB Mount Retention Type: Action/Compliant Tail, Connector Mounting Type: Board Mount, Housing Color: Gray, Centerline (Pitch): 2.54 mm, PCB Thickness (Recommended): 2.36 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Shielded: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Package

Technical specifications
Filter Property Value
Contact type pin
Rated current 1.5 A
Pin number 96 pole
Performance level 2
Contact row assignment a-b-c
Design R
Orientation straight
Grid 2.54 mm
Logistics
Property Value
Country of origin JP
Customs tariff number 85366930
Compliance
Property Value
RoHS conform No
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
