5650461-5 | AMP
Female connector, type R, 96 pole, a-b-c, pitch 2.54 mm, angled, gold-plated, 5650461-5
Order No.: 36P7699
EAN: 4099891012526
MPN:
5650461-5
Unit Price (€ / pc.)
11.1622 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
11.16 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1622 €
10 pcs.
10.3649 €
25 pcs.
9.6747 €
50 pcs.
8.7941 €
*incl. VAT plus shipping costs
Subject to prior sale

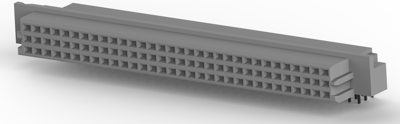

Eurocard connector, 5650461-5, AMP
Connector & Housing Type: Receptacle, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Female connector, DIN Size: Standard, Number of Positions: 96, Number of Rows: 3, PCB Mount Orientation: Right Angle, Number of Columns: 32, Number of Signal Positions: 96, Termination Post & Tail Length: 2.79 mm, Connector Mounting Type: Board Mount, Centerline (Pitch): 2.54 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Performance level | 2 | |
| Contact row assignment | a-b-c | |
| Contact type | socket | |
| Orientation | angled | |
| Design | R | |
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Pin number | 96 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
