5536010-5 | AMP

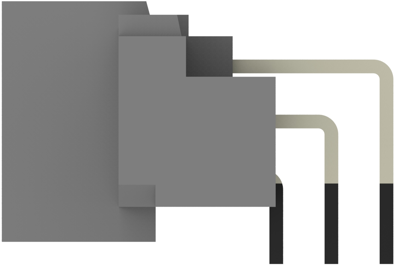

Female connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, angled, gold-plated, 5536010-5
Order No.: 36P7642
EAN: 4099891012342
MPN:
5536010-5
Unit Price (€ / pc.)
5.2003 € *
Available in 5 Days: 930 pcs. - if ordered today
Eurocard connector, 5536010-5, AMP
Connector & Housing Type: Plug, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Female connector, DIN Size: Standard, Number of Positions: 96, Number of Rows: 3, PCB Mount Orientation: Right Angle, Number of Columns: 32, Number of Signal Positions: 96, Termination Post & Tail Length: 2.64 mm, Connector Mounting Type: Board Mount, Centerline (Pitch): 2.54 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Connection | solder pin | |
| Pin number | 96 pole | |
| Orientation | angled | |
| Contact row assignment | a-b-c | |
| Performance level | 2 | |
| contact surface | gold-plated | |
| Design | C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
