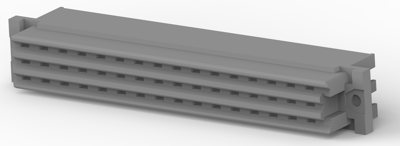

Eurocard connector, 166733-4, AMP
Eurocard Connector Configuration Type: Type F, Connector & Housing Type: Receptacle, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Female connector, Number of Positions: 48, Number of Rows: 3, PCB Mount Orientation: Vertical, Number of Columns: 16, Number of Signal Positions: 48, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 5.5 A, Termination Method to Female connector: Through Hole - Solder, Termination Post & Tail Length: 4.5 mm, Panel Mount Feature: Without, Connector Mounting Type: Board Mount, Housing Color: Gray, Centerline (Pitch): 5.08 mm, Row-to-Row Spacing: 3.81 mm, Operating Temperature Range: -55 – 125 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tray
