1393555-1 | AMP
Female connector, 21 pole, solder lug, straight, gold-plated, 1393555-1
Order No.: 56F1270
EAN: 4099891023690
MPN:
1393555-1
C42334-A300-A14
As a private customer, you can buy this item as soon as we have it back in stock.
Female connector, similar to DIN 41618, type TE Connectivity/AMP RP300.

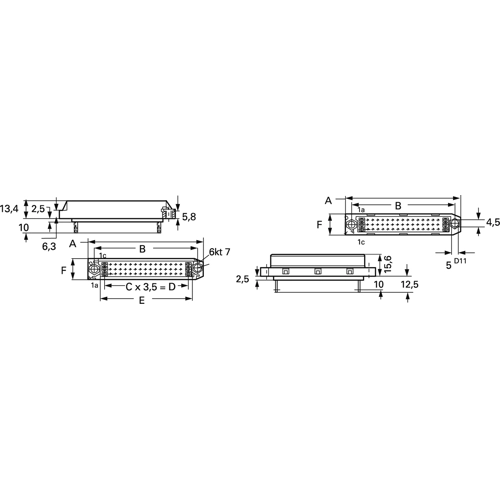

With solder lugs for flying wiring; Insulator: thermoplastic, glass fiber-reinforced. Contacts: gold-plated. Operating current at +20 °C: 4.5 A. Operating voltage compliant with VDE 0110 class A: 300 VDC/250 VAC. Smallest air gap/creepage distance between the contacts: 0.8/1.0 mm. Insertion/ removal cycles: 1000. Dimensions: A 47, B 38, C 6.0, D 21, E 27, F 15 mm.
Female connector, type -139.
Technical attributes (type, number of poles, housing size (size): 0-1393555-1, 21-pole, size 1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 21 pole | |
| Connection | solder lug | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Rated current | 4.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
