5786152-3 | AMP

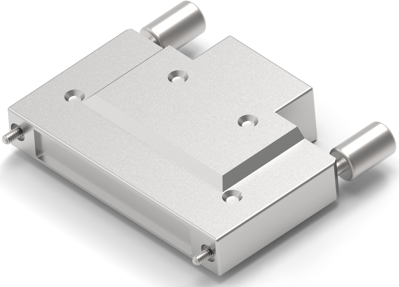

D-Sub connector housing, straight 180°, cable Ø 13.97 mm, zinc die casting, silver, 5786152-3
Unit Price (€ / pc.)
29.7976 € *
Available in 5 Days: 602 pcs. - if ordered today
Total Price:
29.80 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7976 €
5 pcs.
28.2506 €
10 pcs.
26.4299 €
25 pcs.
24.0975 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector housing, AMP, 5786152-3
D-Shaped connector accessory: Backshell Kit, Connector and contact terminates to: wire and cable, Number of positions: 68, Backshell material: Zinc, Cable exit angle: 180° (In-Line), Screw and hole thread size: 2-56 UNC, Cable insulation diameter Range: 13.97 mm.
Features
- Shielded
- Excellent EMI/RFI protection
- Protect your system with shields that mate before contacts, with ground mating first and breaking last
- Board connector compatible with standard thru-hole flow solder and surface-mount reflow solder processes
Applications
- Industrial machinery
- Medical instrumentation
- Computers and peripherals
- RAID storage arrays
- Tape storage system
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Cable diameter | 13.97 mm | |
| Type of locking | locking screw 2-56 UNC | |
| Cable Outlet | straight 180° | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
