5749081-1 | AMP

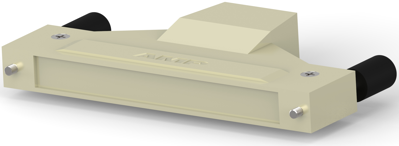

D-Sub connector housing, straight 180°, cable Ø 12.7 mm, zinc die casting, silver, 5749081-1
Unit Price (€ / pc.)
18.4212 € *
Standard delivery time from the manufacturer is: 23 Weeks
D-Sub connector housing, AMP, 5749081-1
D-Shaped connector accessory: Backshell Kit, Connector and contact terminates to: wire and cable, Number of positions: 100, Backshell material: Zinc, Cable exit angle: 180° (In-Line), Cable insulation diameter Range: 12.7 mm, Cover flammability rating: UL 94V-0.
Features
- Shielded
- Excellent EMI/RFI protection
- Protect your system with shields that mate before contacts, with ground mating first and breaking last
- Board connector compatible with standard thru-hole flow solder and surface-mount reflow solder processes
Applications
- Industrial machinery
- Medical instrumentation
- Computers and peripherals
- RAID storage arrays
- Tape storage system
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable Outlet | straight 180° | |
| Shell Material | zinc die casting | |
| Cable diameter | 12.7 mm | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
