5745652-2 | AMP

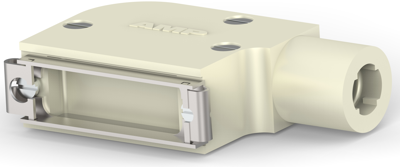

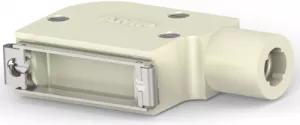

D-Sub connector housing, size: 2 (DA), angled 90°, cable Ø 9.53 mm, zinc die casting, silver, 5745652-2

Order No.: 36P6224
EAN: 4099889810417
MPN:
5745652-2
Series: AMPLIMITE
5745652-2 AMP D-Sub Housings
Image may differ
Unit Price (€ / pc.)
32.9987 € *
Available in 5 Days: 128 pcs. - if ordered today
Total Price:
33.00 € *
Price list
Quantity
Price per unit*
1 pcs.
32.9987 €
5 pcs.
31.2851 €
10 pcs.
29.2740 €
25 pcs.
26.6917 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub connector housing, AMP, 5745652-2

D-Shaped connector accessory: Cable Clamp Kit, Connector and contact terminates to: wire and cable, Number of positions: 15, Cable clamp plating material: Nickel over Copper, Cable clamp type: Two-Piece RFI/EMI Shield, Cable exit angle: 90° (Right Angle), Screw and hole thread size: 4-40, Cable insulation diameter Range: 9.53 mm, Operating temperature range: -55 – 105 °C.

Features

  • Shielded
  • Shell size: 2

Applications

  • Industrial machinery
  • Medical instrumentation
  • Computers and peripherals
  • RAID storage arrays
  • Tape storage system
  • On-machine industrial communications
Technical specifications
Filter Property Value
Shell size 2 (DA)
Colour silver
Cable Outlet angled 90°
Cable diameter 9.53 mm
Shell Material zinc die casting
Logistics
Property Value
Customs tariff number 85389099
Country of origin CZ
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
