5745652-1 | AMP

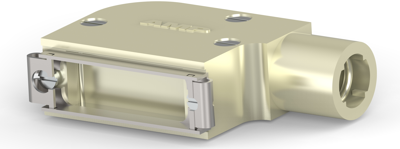

D-Sub connector housing, size: 2 (DA), angled 90°, cable Ø 10.92 mm, zinc die casting, silver, 5745652-1
Unit Price (€ / pc.)
21.4200 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
21.42 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4200 €
2 pcs.
20.0396 €
5 pcs.
18.8258 €
10 pcs.
17.4930 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector housing, AMP, 5745652-1
D-Shaped connector accessory: Cable Clamp Kit, Connector and contact terminates to: wire and cable, Number of positions: 15, Slide latch material: Stainless Steel, Cable clamp type: Two-Piece RFI/EMI Shield, Cable exit angle: 90° (Right Angle), Screw and hole thread size: 4-40, Cable insulation diameter Range: 10.92 mm, Operating temperature range: -55 – 105 °C.
Features
- Shielded
- Shell size: 2
Applications
- Industrial machinery
- Medical instrumentation
- Computers and peripherals
- RAID storage arrays
- Tape storage system
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 10.92 mm | |
| Colour | silver | |
| Shell Material | zinc die casting | |
| Cable Outlet | angled 90° | |
| Shell size | 2 (DA) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
