5745175-2 | AMP

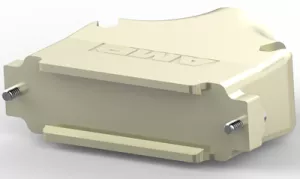

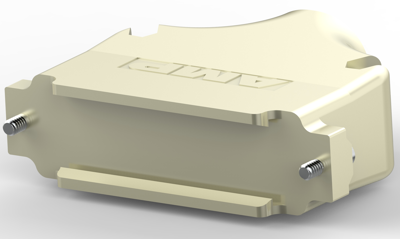

D-Sub connector housing, size: 5 (DD), straight 180°, cable Ø 17.15 mm, zinc die casting, silver, 5745175-2
Unit Price (€ / pc.)
16.6362 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
16.64 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6362 €
10 pcs.
15.4462 €
25 pcs.
14.4228 €
50 pcs.
13.1138 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector housing, AMP, 5745175-2
D-Shaped connector accessory: Cable Clamp Kit, Number of positions: 50, Shield plating finish: Bright, Cable clamp type: Two-Piece RFI/EMI Shield, Cable exit angle: 180° (In-Line), Screw and hole thread size: 4-40, Cable insulation diameter Range: 17.15 mm, Operating temperature range: -55 – 85 °C.
Features
- Shielded
- Shell size: 5
Applications
- Industrial machinery
- Medical instrumentation
- Computers and peripherals
- RAID storage arrays
- Tape storage system
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 5 (DD) | |
| Cable Outlet | straight 180° | |
| Cable diameter | 17.15 mm | |
| Shell Material | zinc die casting | |
| Type of locking | locking screw 4-40 UNC | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
